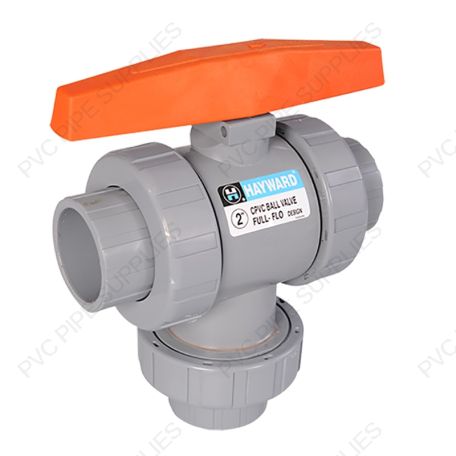

3" Hayward TW Series 3-Way True Union CPVC Ball Valve

SKU: TW2300SE
Color: Light Gray
3" Hayward TW Series 3-Way True Union CPVC Ball Valve w/Socket ends, EPDM O-rings

Details

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. Depending on flow configuration there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

Additional Information

MPN TW2300SE
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style 3-Way True Union
Series TW Series
Valve Type True Union Ball Valve
Valve Size 3"
Valve Connection Type Socket
Material CPVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material PTFE
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377833011
Color Light Gray
Installation Manual
Technical Data
Dimensions Image
