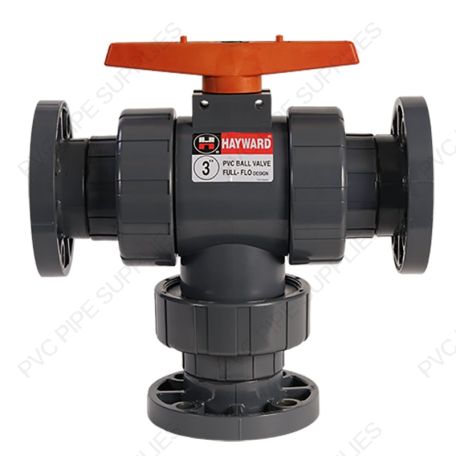

3" Hayward TW Series 3-Way True Union PVC Ball Valve
Main image
Click to view image in fullscreen
![]()
SKU:
TW1300F
Color:
Gray
3" Hayward TW Series 3-Way True Union PVC Ball Valve w/Flanged ends, FPM O-rings
$1,699.99
Details
TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. Depending on flow configuration there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.
3" Hayward TW Series 3-Way True Union PVC Ball Valve w/Flanged ends, FPM O-rings
Additional Information
| MPN | TW1300F |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | 3-Way True Union |
| Series | TW Series |
| Valve Type | True Union Ball Valve |
| Valve Size | 3" |
| Valve Connection Type | Flanged |
| Material | PVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | FPM |
| Seat Material | PTFE |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377832663 |
| Color | Gray |
| Installation Manual | Hayward TW1300F Installation Manual |
| Technical Data | Hayward TW1300F Technical Data |
| Dimensions Image |
