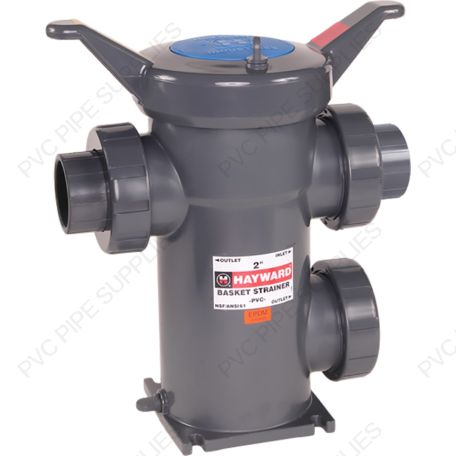

4" Hayward SB Series PVC Simplex Basket Strainer w/Threaded ends
When pipeline system components require protection from dirt and debris and the line can be shut down for basket cleaning, a Hayward All Plastic Simplex Basket Strainer is the ideal choice. Unwanted particles are removed as the process media passes through a perforated strainer basket contained inside the strainer body. The basket traps the unwanted material while allowing the process media to flow freely.
Available in sizes 1/2 inch to 4 inch in PVC, CPVC, GFPP Black, GFPP Platinum and Eastar® materials. Seals are FPM or EPDM with either socket, threaded or flanged end connections. Each strainer comes with a standard plastic basket. Other basket materials available such as SS316, Monel and Hastelloy available upon request. See Basket Replacements.
|Strainer Connection Type||Threaded|
|Seal Type||Double O-Ring Stem|
|Max Pressure||150 PSI (10.3 bar) @ 70˚F (21˚C)|
|Ratings & Standards||NSF/ANSI 61|
|Installation Manual||Hayward SB1400T Installation Manual|
|Technical Data||Hayward SB1400T Technical Data|
