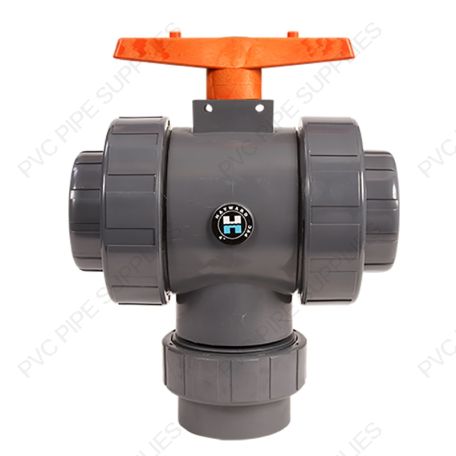

4" Hayward TW Series 3-Way True Union PVC Ball Valve

SKU: TW1400TE
Color: Gray
4" Hayward TW Series 3-Way True Union PVC Ball Valve w/Threaded ends, EPDM O-rings

Details

TW Series 3-Way ball valves are available in PVC and CPVC. O-rings are either FPM or EPDM and the seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. Depending on flow configuration there is a choice of 3 ball types. All TW Series valves are assembled with silicone free lubricant.

Additional Information

MPN TW1400TE
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style 3-Way True Union
Series TW Series
Valve Type True Union Ball Valve
Valve Size 4"
Valve Connection Type Threaded
Material PVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material PTFE
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377832243
Color Gray
Installation Manual
Technical Data
Dimensions Image
