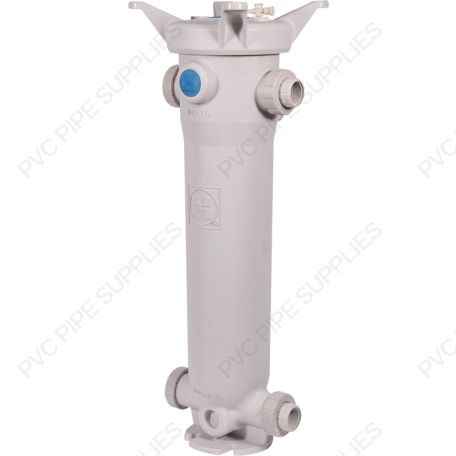

4" Hayward FLV Series GFPP Simplex Bag Filter Vessel w/Flanged ends
Main image
Click to view image in fullscreen
calcActive())">
SKU:
FLV4P2S40F4VS
Color:
Platinum
4" Hayward FLV Series GFPP Simplex Bag Filter w/Flanged ends, FPM O-rings
$5,518.99
Details
Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion or flanged ends. One piece injection molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150 psi at 70°F non-shock, with flow rates up to 100 GPM up to 2 inch; 150 GPM for 2-1/2 inch to 4 inch end connections. Available in size 1 and size 2 vessels, as well as Simplex, Duplex or Triplex assemblies. Metric (DIN/EN) connections also available.
4" Hayward FLV Series GFPP Simplex Bag Filter w/Flanged ends, FPM O-rings
Additional Information
MPN | FLV4P2S40F4VS |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Series | FLV Series |
Type | Filter Vessel |
Style | Simplex |
Filter Type | Bag Filter |
Filter Size | 4" |
Filter Length | Double |
Filter Vessel Size | 32" |
Filter Bag Size | 7" x 32" |
Filter Connection Type | Flanged |
Material | GFPP |
Seal Material | GFPP |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 1 |
UPC Code | 0610377203777 |
Color | Platinum |
Installation Manual | Hayward FLV4P2S40F4VS Installation Manual |
Technical Data | Hayward FLV4P2S40F4VS Technical Data |
Dimensions Image |
