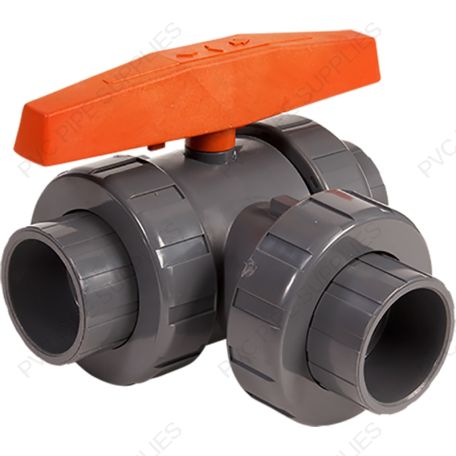

4" Hayward LA Series 3-Way Lateral True Union PVC Ball Valve
Main image
Click to view image in fullscreen
![]()
SKU:
LA1400S
Color:
Gray
4" Hayward LA Series 3-Way Lateral True Union PVC Ball Valve w/Socket ends, FPM O-rings
$1,729.99
Details
LA Series lateral 3-way ball valves are available in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.
4" Hayward LA Series 3-Way Lateral True Union PVC Ball Valve w/Socket ends, FPM O-rings
Additional Information
| MPN | LA1400S |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | 3-Way True Union |
| Series | LA Series |
| Valve Type | True Union Ball Valve |
| Valve Size | 4" |
| Valve Connection Type | Socket |
| Material | PVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | FPM |
| Seat Material | PTFE |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377832151 |
| Color | Gray |
| Installation Manual | Hayward LA1400S Installation Manual |
| Technical Data | Hayward LA1400S Technical Data |
| Dimensions Image |
