6" AcuFlow Flow Meter with CPVC Saddle Clamp (300-1000 GPM)
Details
AcuFlow™ is a revolutionary, patented solution for accurate and reliable flow and velocity rate measurement in fresh, gray and potable water applications. Using a design based on "mass flow" principles, AcuFlow™ provides many benefits that include:
- Ease of installation with zero to minimal straight pipe and no calibration required
- Installation flexibility that allows orientation in any position, e.g., horizontal, vertical, or even upside-down
- Long life without sticking floats or paddle wheels
- 15 year design life, 3 year warranty
- User upgradeable to include Digital functionality (AF-D and AF-D-PM)
- Manufactured in the USA
Additional Information
| MPN | AF-6 |
|---|---|
| Inventory Type | DS |
| Manufacturer | H2flow Controls |
| Type | Flow Meter |
| Schedule | Schedule 80 |
| Flow Meter Size Summary | 6" Schedule 80 Pipe |
| Flow Meter Body Material | CPVC |
| Flow Meter O-Ring Material | Viton |
| Material | CPVC |
| Max Pressure | 125 PSI |
| Maximum Temperature | 140° F (60° C) |
| Minimum Temperature | 32° F (0° C) |
| Flow Range | 300-1000 GPM |
| Accuracy | +/- 2% |
| Application State | Liquid |
| Brochure | H2flow Controls AF-6 Brochure |
| Installation Manual | H2flow Controls AF-6 Manual |

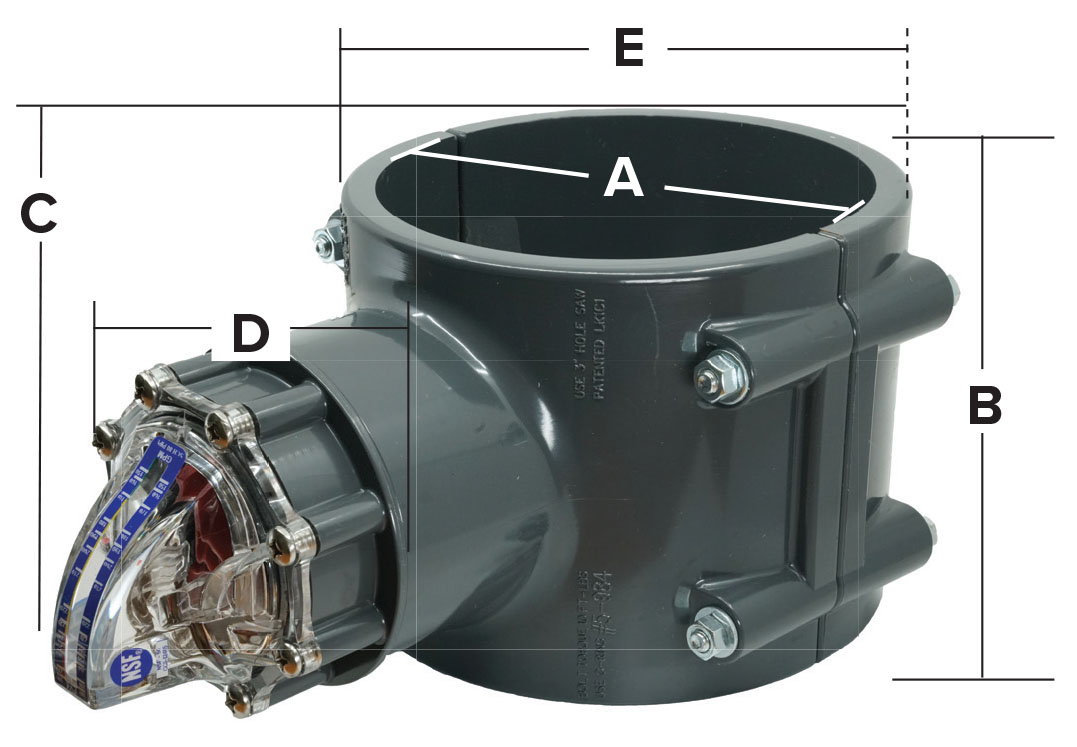

| Dimensions Image | |
| Dimensions | <table> <tr> <td>A</td> <td>Schedule 80 - 6.65"</td> </tr> <tr> <td>B</td> <td>6"</td> </tr> <tr> <td>C</td> <td>12.53"</td> </tr> <tr> <td>D</td> <td>4.23"</td> </tr> <tr> <td>E</td> <td>7.53"</td> </tr> </table> |
