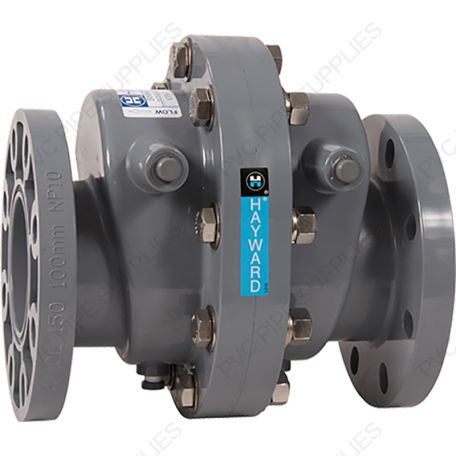

6" Hayward SW Series CPVC Swing-Check Valve, FPM O-rings & Counterweight

Main image Click to view image in fullscreen

SKU: SW2600VC

Color: Light Gray

6" Hayward SW Series CPVC Swing-Check Valve w/ Flanged ends, FPM O-rings & Counterweight

Details

SW Series swing check valves are offered in PVC, CPVC and PP. Seals and seats are FPM or EPDM. A counterweight is an option for added stability. Swing check valves are furnished with two o-ring flange seals so no additional gaskets are required for installation. All valves are assembled with silicone free lubricant.

6" Hayward SW Series CPVC Swing-Check Valve w/ Flanged ends, FPM O-rings & Counterweight

Additional Information

MPN	SW2600VC
Inventory Type	DS
Manufacturer	Hayward
Type	Check Valve
Style	Swing
Valve Type	Swing Check Valve
Valve Size	6"
Valve Connection Type	Flanged
Material	CPVC
Seal Type	Double O-Ring Stem
Seal Material	FPM
Flow Design	Full
Max Pressure	150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty	1
UPC Code	0610377235754
Color	Light Gray
Installation Manual	Hayward SW2600VC Installation Manual
Technical Data	Hayward SW2600VC Technical Data
Dimensions Image
