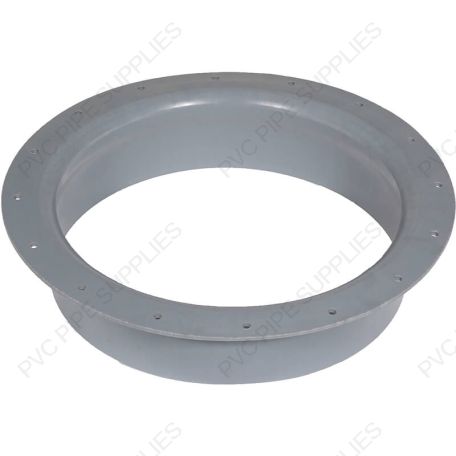

8" CPVC Duct Flange, 1834-SF-08
Details
CPVC thin wall duct fittings are used for air / exhaust applications. The fittings are made with lightweight thin wall CPVC and makes large jobs labor friendly because of its weight. CPVC Duct fittings are to be used only on open air systems, they are not suited for liquid handling or pressure situations. CPVC duct fittings have higher impact strengths and great fire resistant properties. CPVC duct fittings are rated to handle temperatures up to 200 degrees F. Most commonly used in industrial HVAC applications for new constructions. The sizes range from 2” up to 24” in diameter. CPVC duct fittings have excellent chemical resistance to most fumes, gases, and media. Standard CPVC cement and primer can be used for installation. It is recommended to CPVC weld these systems with large diameter sizes.
Undrilled flanges also available
Duct drilling, not 150#
Flanges with 150# drilling available on a custom basis
All flanges are 3/16" thick material
All bolt holes are 5/16" diameter
Additional Information
MPN | 1834-SF-08 |
---|---|
Inventory Type | DS |
Manufacturer | Harrison |
Type | Duct Fitting |
Style | Flange |
Size | 8" |
Connection Type | Socket / Belled |
Bolt Hole Diameter (in.) | 10.5 |
Number of Bolt Holes | 10 |
Socket Depth (in.) | 2.25 |
Material | CPVC |
Maximum Temperature | 200°F (93° C) |
Color | Light Gray |
Ratings & Standards | ASTM D1784 Cell Class 23447 |
Technical Data | Harrison Product Specifications |
Dimensions Image |   1834-SF-08 |
