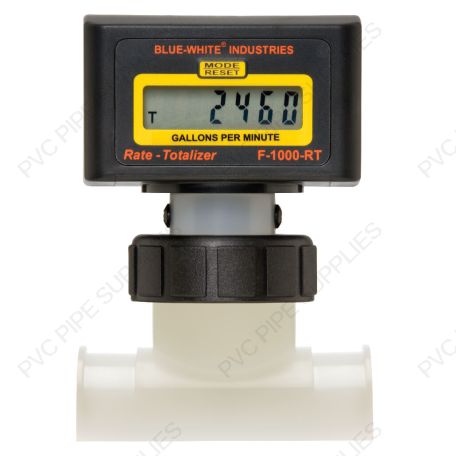

2-1/2" Schedule 80 Pipe Paddlewheel Flow Meter with Saddle Mount Body (40-400 GPM), TB-250S8-GPM1
Main image
Click to view image in fullscreen
![]()
Details
BW Digi-Meter® F-1000 Features:
- Easy to read 6 digit LCD, up to 4 decimal positions.
- Tamper proof.
- Battery operated (2 AAA batteries included)
- Total reset function can be disabled.
- Display update time: Rate 1.5 sec., Total 0.5 sec.
- Factory calibrated - nothing to program.
- Custom calibration units available. Contact the factory.
- Weather resistant ABS enclosure. NEMA 4X.
- LCD is not recommended for direct sunlight applications.
- RB = Rate Only
- TB = Total Only
- RT = Rate & Totalizer
TOTAL ONLY
Additional Information
| MPN | TB-250S8-GPM1 |
|---|---|
| Inventory Type | DS |
| Manufacturer | Blue White |
| Model Number | TB - Total Only |
| Series | F-1000 |
| Flow Meter Size Summary | 2-1/2" Schedule 80 Pipe |
| Flow Meter Body Material | PVC |
| Flow Meter O-Ring Material | Viton |
| Material | PVDF |
| Max Pressure | 300 psig (20 bar) @ 70° F (21° C) |
| Maximum Temperature | 200° F (93° C) @ 0 PSI |
| Flow Range | 40-400 GPM |
| Color | Black |
| Accuracy | +/- 2% |
| Application State | Liquid |
| Installation Manual | |
| Technical Data |
