3" Paddlewheel Flow Meter with Solvent Weld PVC Tee Body (60-600 GPM), APS130ATGM1

SKU: APS130ATGM1



$1,199.99
-
+
OR

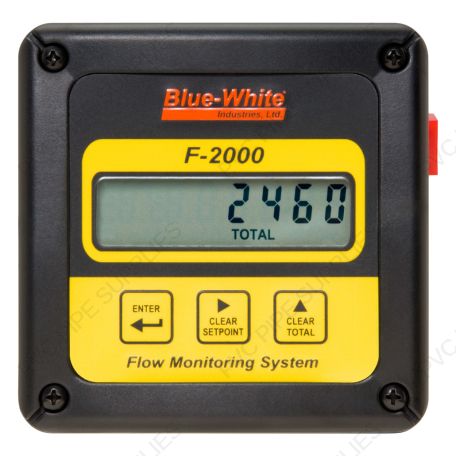

BW Digi-Meter® F-2000 Features:
  • Easy to read 8 digit LCD, up to 4 decimal positions.
  • Flow rate and Total flow display.
  • AC/DC transformer or battery operated (RT models only). 4 AA batteries.
  • Factory programmed with calibration certificate.
  • Field programmable via front panel touch pad.
  • Front panel security lockout.
  • Total reset function can be disabled.
  • Weather resistant ABS enclosure. NEMA 4X.
  • Note: LCD is not recommended for direct sunlight applications.
  • Panel mounting option available.
  • Custom calibration units available. Contact the factory.

4 model variations:
  • RT = Rate and Totalizer. Transformer or battery operated.
  • AO = 4-20mA, 0-10 VDC analog output, flow rate & totalizer. Transformer operated.
  • PC = Batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.
  • AP = Analog output, batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.
SKU APS130ATGM1
Manufacturer Blue White
Model Number AP
Series F-2000
Flow Meter Size Summary 3" Solvent Weld PVC Tee
Flow Meter O-Ring Material Viton (Optional EP)
Material PVDF
Color Black
Maximum Temperature 140° F (60° C) @ 0 psig
Flow Range 60-600 GPM
Accuracy +/- 1%
Application State Liquid
Installation Manual Blue White APS130ATGM1 Installation Manual
Technical Data Blue White APS130ATGM1 Technical Data
Dimensions Image APS130ATGM1
Dimensions
A 8"
B 5-1/2"
