6" Schedule 40 Pipe Paddlewheel Flow Meter with Saddle Mount Body (250-2500 GPM), RTS160A4GM1
Main image
Click to view image in fullscreen
![]()
Details

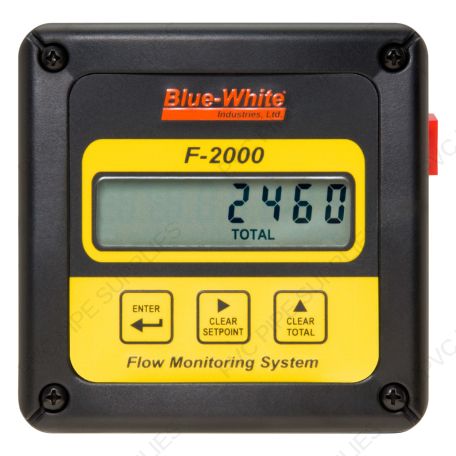

BW Digi-Meter® F-2000 Features:
- Easy to read 8 digit LCD, up to 4 decimal positions.
- Flow rate and Total flow display.
- AC/DC transformer or battery operated (RT models only). 4 AA batteries.
- Factory programmed with calibration certificate.
- Field programmable via front panel touch pad.
- Front panel security lockout.
- Total reset function can be disabled.
- Weather resistant ABS enclosure. NEMA 4X.
- Note: LCD is not recommended for direct sunlight applications.
- Panel mounting option available.
- Custom calibration units available. Contact the factory.
- RT = Rate and Totalizer. Transformer or battery operated.
- AO = 4-20mA, 0-10 VDC analog output, flow rate & totalizer. Transformer operated.
- PC = Batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.
- AP = Analog output, batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.
Additional Information
| MPN | RTS160A4GM1 |
|---|---|
| Inventory Type | DS |
| Manufacturer | Blue White |
| Model Number | RT - Rate & Totalizer |
| Series | F-2000 |
| Flow Meter Size Summary | 6" Schedule 40 Pipe |
| Flow Meter Body Material | PVC |
| Flow Meter O-Ring Material | Viton (Optional EP) |
| Material | PVDF |
| Max Pressure | 300 psig (20 bar) @ 70° F (21° C) |
| Maximum Temperature | 140° F (60° C) @ 0 psig |
| Flow Range | 250-2500 GPM |
| Color | Black |
| Accuracy | +/- 1% |
| Application State | Liquid |
| Installation Manual | |
| Technical Data |
