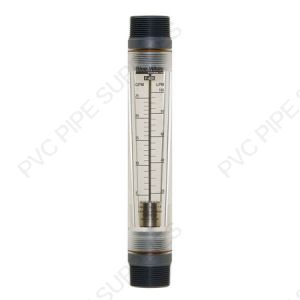

1" FPT Acrylic Flow Meter (8-40 GPM), F-42040LN-16

Main image Click to view image in fullscreen

SKU: F-42040LN-16

Color: Clear

$359.99

Details

Durable, highly polished, one piece meter body.
Annealed for added strength and chemical resistance.
Acceptable for outdoor installations (acceptable in direct sunlight)
Direct reading permanent scale.
White back reflector for easy reading.
Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.

MPN	F-42040LN-16
Inventory Type	DS
Manufacturer	Blue White
Model Number	F-420N
Flow Meter Size Summary	1" FPT
Flow Meter Body Material	Acrylic
Flow Meter O-Ring Material	Viton (Optional EP)
Flow Meter Adapter Material	PVC
Flow Meter Guide Rod Holder Material	Polysulfone
Guide Rod Material	316 SS
Flow Meter Float Material	316 SS
Material	Acrylic
Max Pressure	130 PSI (8.9 bar) @ 70°F (21°C)
Maximum Temperature	130° F (54° C) @ 0 psig
Flow Range	8-40 GPM
Color	Clear
Accuracy	+/- 5%
Application State	Liquid
Installation Manual	Blue White F-42040LN-16 Installation Manual
Technical Data	Blue White F-42040LN-16 Technical Data
