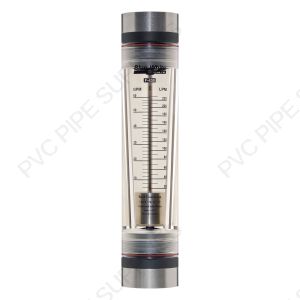

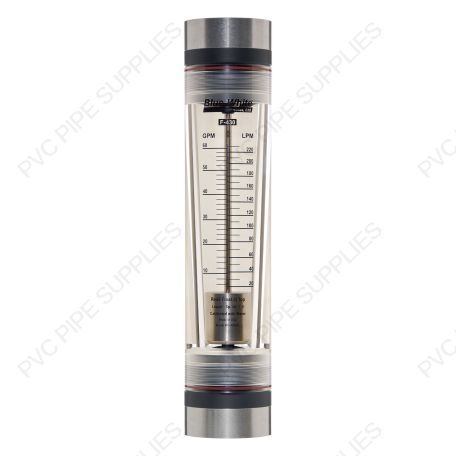

2" FPT Acrylic Flow Meter (20-100 GPM), F-43100LNS

SKU: F-43100LNS

Regular Price: $899.99

Special Price $689.99

  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
SKU F-43100LNS
MPN F-43100LNS
Inventory Type DS
Manufacturer Blue White
Model Number F-430N
Flow Meter Size Summary 2" FPT
Flow Meter Body Material Acrylic
Flow Meter O-Ring Material Viton (Optional EP)
Flow Meter Adapter Material PVC
Flow Meter Guide Rod Holder Material Polysulfone
Guide Rod Material 316 SS
Flow Meter Float Material 316 SS
Material Acrylic
Color Clear
Max Pressure 130 PSI (8.9 bar) @ 70°F (21°C)
Maximum Temperature 130° F (54° C) @ 0 psig
Flow Range 20-100 GPM
Accuracy +/- 5%
Application State Liquid
Installation Manual Blue White F-43100LNS Installation Manual
Technical Data Blue White F-43100LNS Technical Data
