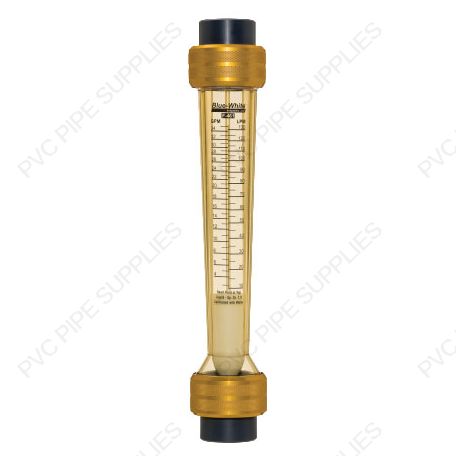

1" FPT Ultrapure - Polysulfone Flow Meter (2-20 GPM), F-461200LX-16P
Main image
Click to view image in fullscreen
![]()
Details
- For use in UltraPure applications
- No metal in the fluid path
- Rib guided float
- Polysulfone meter body resists high temperatures and pressures
- PTFE float and optional PVC, Polypropylene or PVDF adapters for corrosive applications
- Direct reading permanent scale
Additional Information
| MPN | F-461200LX-16P |
|---|---|
| Inventory Type | DS |
| Manufacturer | Blue White |
| Model Number | F-461 |
| Flow Meter Size Summary | 1" FPT |
| Flow Meter Body Material | Polysulfone |
| Flow Meter O-Ring Material | Viton (Optional EP) |
| Flow Meter Adapter Material | PVC |
| Flow Meter Float Material | PTFE |
| Material | Polysulfone |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Maximum Temperature | 130° F (54° C) @ 0 psig |
| Flow Range | 2-20 GPM |
| Color | Clear |
| Accuracy | +/- 2% |
| Application State | Liquid |
| Installation Manual | |
| Technical Data |
