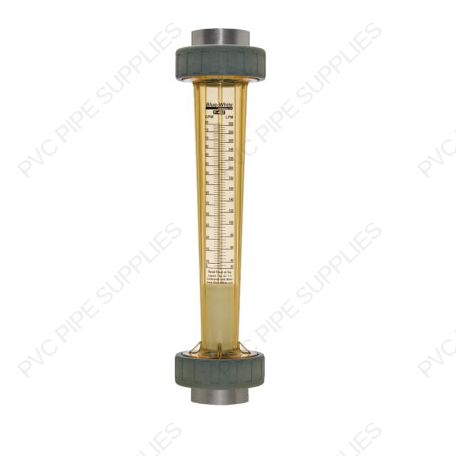

2" FPT Ultrapure - Polysulfone Flow Meter (5-50 GPM), F-462500LP-32H

SKU: F-462500LP-32H
Color: Clear


Details

Ideal for corrosive environments such as Deionized Water (DI Water) or other applications where an all plastic meter is desirable.

  • Designed for in-line installation (Vertical)
  • 2” and 63mm Pipe Size
  • F/NPT, Socket Fusion and Butt Fusion connections
  • Rib Guided Float
  • No Metal in the fluid path
  • Optional polycarbonate splash shield.
  • Not recommended for direct sunlight
  • OEM options available

Additional Information

MPN F-462500LP-32H
Inventory Type DS
Manufacturer Blue White
Model Number F-462
Flow Meter Size Summary 2" FPT
Flow Meter Body Material Polysulfone
Flow Meter O-Ring Material Viton (Optional EP)
Flow Meter Adapter Material Polysulfone
Flow Meter Float Material PTFE
Material Polysulfone
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Maximum Temperature 200° F (93° C) @ 0 PSI
Flow Range 5-50 GPM
Color Clear
Accuracy +/- 2%
Application State Liquid
