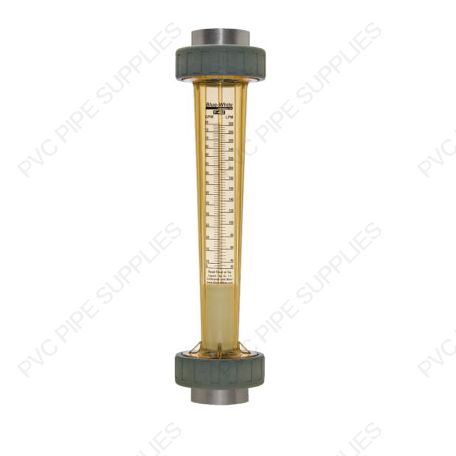

2" FPT Ultrapure - Polysulfone Flow Meter (8-80 GPM), F-462800LP-32H
Main image
Click to view image in fullscreen
calcActive())">
Details
Ideal for corrosive environments such as Deionized Water (DI Water) or other applications where an all plastic meter is desirable.
- Designed for in-line installation (Vertical)
- 2” and 63mm Pipe Size
- F/NPT, Socket Fusion and Butt Fusion connections
- Rib Guided Float
- No Metal in the fluid path
- Optional polycarbonate splash shield.
- Not recommended for direct sunlight
- OEM options available
Additional Information
MPN | F-462800LP-32H |
---|---|
Inventory Type | DS |
Manufacturer | Blue White |
Model Number | F-462 |
Flow Meter Size Summary | 2" FPT |
Flow Meter Body Material | Polysulfone |
Flow Meter O-Ring Material | Viton (Optional EP) |
Flow Meter Adapter Material | Polysulfone |
Flow Meter Float Material | PTFE |
Material | Polysulfone |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Maximum Temperature | 200° F (93° C) @ 0 PSI |
Flow Range | 8-80 GPM |
Color | Clear |
Accuracy | +/- 2% |
Application State | Liquid |
Installation Manual | |
Technical Data |
