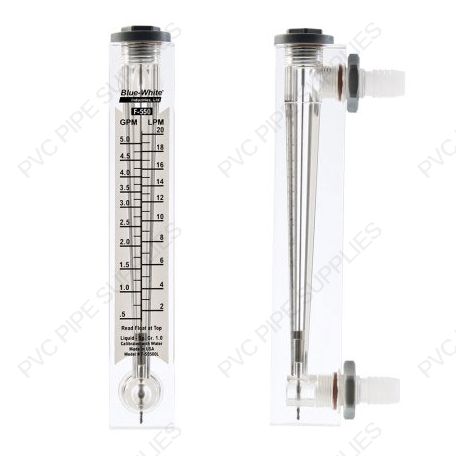

1" MPT Acrylic Flow Meter (2-20 GPM), F-55200L

SKU: F-55200L
Color: Clear


Details

  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Bulkhead nuts attach directly to inside panel.
  • Optional adjustable flow control: needle-type adjustment valve.
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • 316 stainless, PTFE or Hastelloy floats and float guides.

Adapter Options:

  • 1/4?, 3/8?, 3/4?, 1? Male NPT
  • 1/2? Hose Barb

Additional Information

MPN F-55200L
Inventory Type DS
Manufacturer Blue White
Model Number F-550
Flow Meter Size Summary 1" MPT
Flow Meter Body Material Acrylic
Flow Meter O-Ring Material Viton (Optional EP)
Flow Meter Adapter Material Polypropylene
Guide Rod Material 316 SSS
Flow Meter Float Material 316 SSS
Material Acrylic
Max Pressure 250 PSI (17.2 bar) @ 70° F (21° C)
Maximum Temperature 200° F (93° C) @ 0 PSI
Flow Range 2-20 GPM
Color Clear
Accuracy +/- 5%
Application State Liquid
Installation Manual
Technical Data
