Hayward TBH-Z Series True Union Ball Valve

Hayward's TBH-Z Series (Z-Ball) true union ball valves have a drilled ball to vent gases for sodium hypochlorite service. Available in PVC or CPVC materials with FPM o-rings only and PTFE seats. Sizes are 1/2" to 2" with IPS or DIN/EN socket, threaded and flanged end connections.

All valves are assembled with silicone free lubricant. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – available on all sizes. Fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock across all sizes and materials. Full 250 psi / PN16 Rating, Non-Shock at 70°F / 23°C

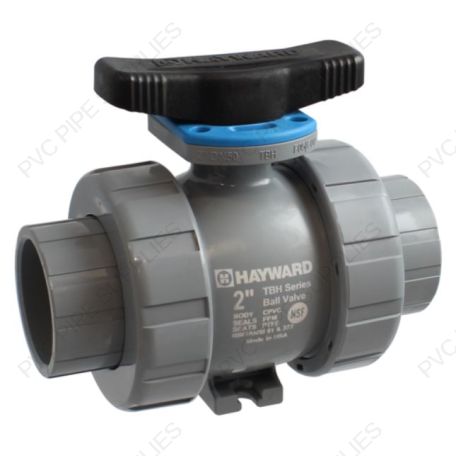

Hayward TBH "Z-Ball" Series True Union Ball Valve
