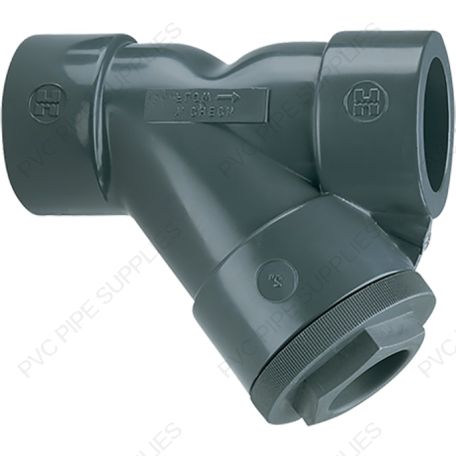

1-1/2" Hayward YS Series PVC Y Strainer w/Threaded ends
Main image
Click to view image in fullscreen
calcActive())">
Details
Hayward Y Strainers protect piping system components from damage caused by dirt or debris in the process media. They cost less than other types of strainers and are lightweight and very compact. Because they can often be supported by the pipeline alone, they work in applications where other strainers cannot.
150 psi at 70°F Non-Shock
All Y-Strainers have an FPM o-ring seal and are assembled with silicone free lubricant. Each Y-Strainer includes one 1/32" perforated plastic screen. (Stainless steel screens are 1/32" perforation.)
Additional Information
MPN | YS10150T |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Y Strainer |
Series | YS Series |
Strainer Size | 1-1/2" |
Strainer Screen Size | 1/32" |
Strainer Connection Type | Threaded |
Material | PVC |
Seal Type | Double O-Ring Stem |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 6 |
UPC Code | 0610377168939 |
Color | Gray |
Installation Manual | Hayward YS10150T Installation Manual |
Technical Data | Hayward YS10150T Technical Data |
Dimensions Image |
