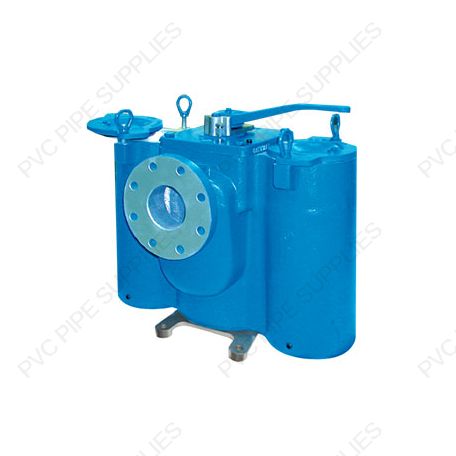

Model 53 BTX 1 1/4" Eaton Duplex Strainer with Threaded connection and Carbon Steel body
The Eaton Model 53BTX duplex basket strainer can operate continuously, eliminating the need to shut down processes for cleaning of strainers. When the first basket is full, a unique flow diverter cartridge shifts flow to a second basket to permit removal and cleaning with no interruption to operations.
Draining this chamber is easy; the cover lifts and swings clear of the chamber opening with no special tools required.
The unique flow diverter cartridge prevents fluid bypass into the out-of-service chamber. It features a dynamic sealing system that ensures exceptionally long seat life and positive sealing. Manual internal or external ball support adjustments are not necessary.
Dynamic sealing design for long life
Easy-to-operate lever handle—no gear box required
Unique seat and seal design requires no adjustments
Teflon seats for longer service life
Foot pads for rock solid installation
Double-stem O-rings for positive sealing
Easy to access body vent valve
Drain plugs in each basket cover
Piston seal strainer basket cover
Easy access for diverter cartridge removal
American Bureau of Shipping (ABS) Type Approved for ship designers, builders and owners
|Strainer Size||1 1/4"|
|Strainer Connection Type||Threaded|
|Max Pressure||200 PSI (13.8 bar) @ 100˚F (38˚C)|
|Installation Manual||Eaton ST053012BT33TS Installation Manual|
|Technical Data||Eaton ST053012BT33TS Technical Data|
