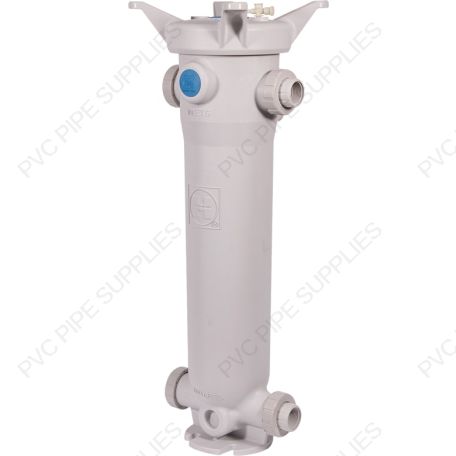

1-1/2" Hayward FLV Series GFPP Simplex Bag Filter Vessel w/Flanged ends

SKU: FLV4P2S15F4VS

1-1/2" Hayward FLV Series GFPP Simplex Bag Filter w/Flanged ends, FPM O-rings
$2,799.99
-
+
OR

Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion or flanged ends. One piece injection molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150 psi at 70°F non-shock, with flow rates up to 100 GPM up to 2 inch; 150 GPM for 2-1/2 inch to 4 inch end connections. Available in size 1 and size 2 vessels, as well as Simplex, Duplex or Triplex assemblies. Metric (DIN/EN) connections also available.

SKU FLV4P2S15F4VS
Inventory Type DS
Manufacturer Hayward
Series FLV Series
Type Filter Vessel
Style Simplex
Filter Type Bag Filter
Filter Size 1-1/2"
Filter Length Double
Filter Vessel Size 32"
Filter Bag Size 7" x 32"
Filter Connection Type Flanged
Material GFPP
Seal Material GFPP
Color Platinum
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377203715
Installation Manual Hayward FLV4P2S15F4VS Installation Manual
Technical Data Hayward FLV4P2S15F4VS Technical Data
Dimensions Image Hayward FLV4P2S15F4VS Drawing
