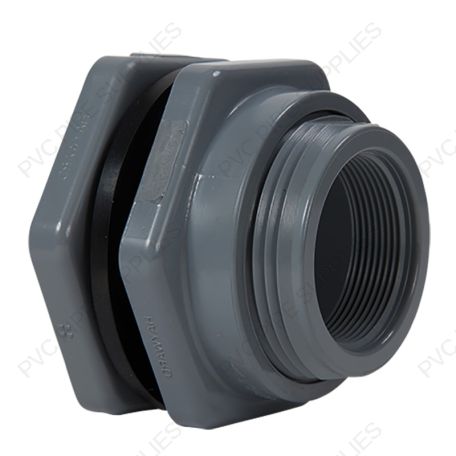

1" Hayward BFAS Series PVC Bulkhead Fitting w/Threaded x Threaded ends


1" PVC Bulkhead Fitting w/FPM gasket; threaded x threaded end connections, BFAS1010TFS


Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe,quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.

Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA Series.

Inventory Type DS
Manufacturer Hayward
Type Bulkhead Fitting
Series BFAS Series
Schedule Schedule 80
Size 1"
Connection Type Threaded x Threaded
Material PVC
Seal Material Viton
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
UPC Code 610377137041
Technical Data Hayward BFAS1010TFS Technical Data
Dimensions Image Hayward BFAS1010TFS Drawing
