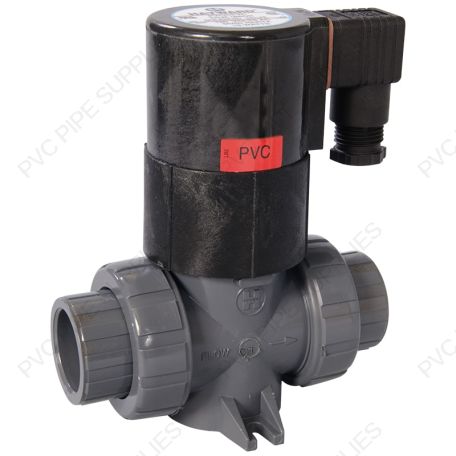

1/2" Hayward SV Series True Union CPVC Solenoid Valve
Details
SV Series solenoid valves are available in PVC or CPVC. Seals are FPM or EPDM. All sizes are offered with socket and threaded end connections. Standard voltage is 120 VAC. Specify optional voltage of 12 or 24 VAC/VDC or 220VAC.
Additional Information
| MPN | SV20050STE |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Solenoid Valve |
| Style | True Union |
| Series | SV Series |
| Valve Type | True Union Solenoid Valve |
| Valve Size | 1/2" |
| Valve Connection Type | Socket and Threaded |
| Material | CPVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | EPDM |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Actuator Voltage | 110 VAC |
| Carton Qty | 1 |
| UPC Code | 0610377115896 |
| Color | Light Gray |
| Installation Manual | Hayward SV20050STE Installation Manual |
| Technical Data | Hayward SV20050STE Technical Data |
| Dimensions Image |
