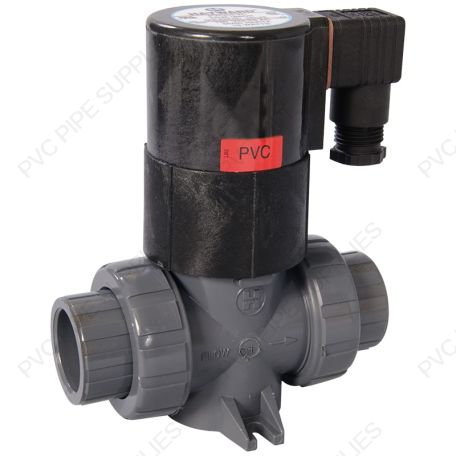

1/2" Hayward SV Series True Union PVC Solenoid Valve
Main image
Click to view image in fullscreen
![]()
SKU:
SV10050STE
Color:
Gray
1/2" Hayward SV Series True Union PVC Solenoid Valve w/Socket and Threaded ends, EPDM O-rings
$619.99
Details
SV Series solenoid valves are available in PVC or CPVC. Seals are FPM or EPDM. All sizes are offered with socket and threaded end connections. Standard voltage is 120 VAC. Specify optional voltage of 12 or 24 VAC/VDC or 220VAC.
1/2" Hayward SV Series True Union PVC Solenoid Valve w/Socket and Threaded ends, EPDM O-rings
Additional Information
| MPN | SV10050STE |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Solenoid Valve |
| Style | True Union |
| Series | SV Series |
| Valve Type | True Union Solenoid Valve |
| Valve Size | 1/2" |
| Valve Connection Type | Socket and Threaded |
| Material | PVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | EPDM |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Actuator Voltage | 110 VAC |
| Carton Qty | 1 |
| UPC Code | 0610377728584 |
| Color | Gray |
| Installation Manual | Hayward SV10050STE Installation Manual |
| Technical Data | Hayward SV10050STE Technical Data |
| Dimensions Image |
