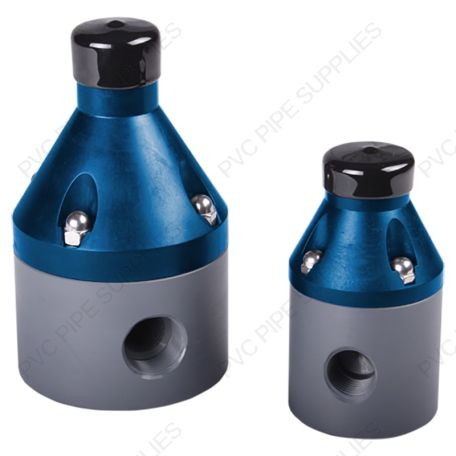

1/2" Hayward PBV Series CPVC Diaphragm Back Pressure Valve w/FPT x Threaded ends
Main image
Click to view image in fullscreen

calcActive())">
SKU:
PBV2050TPE1
Color:
Light Gray
1/2" Hayward PBV Series CPVC Diaphragm Back Pressure Valve w/FPT x Threaded ends
$509.99
Details
All thermoplastic diaphragm Back Pressure Valve for chemical feed systems, applies back pressure to a metering pump to prevent siphoning and eliminates varying dosage rates resulting from fluctuating downstream pressure. All valves are preset for 50 psi, but are field adjustable via the adjustment screw.
1/2" Hayward PBV Series CPVC Diaphragm Back Pressure Valve w/FPT x Threaded ends
Additional Information
MPN | PBV2050TPE1 |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Diaphragm Valve |
Style | Back Pressure |
Series | PBV Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | Diaphragm Back Pressure Valve |
Valve Size | 1/2" |
Valve Connection Type | FPT x Threaded |
Diaphragm Material | PTFE/EPDM |
Material | CPVC |
Max Pressure | 250 PSI (17.2 bar) @ 70° F (21° C) |
Carton Qty | 1 |
UPC Code | 0610377303149 |
Color | Light Gray |
Installation Manual | Hayward PBV2050TPE1 Installation Manual |
Technical Data | Hayward PBV2050TPE1 Technical Data |
