1/4" PVC Low Extractable 15 PSI Gauge Guard FKM
Details

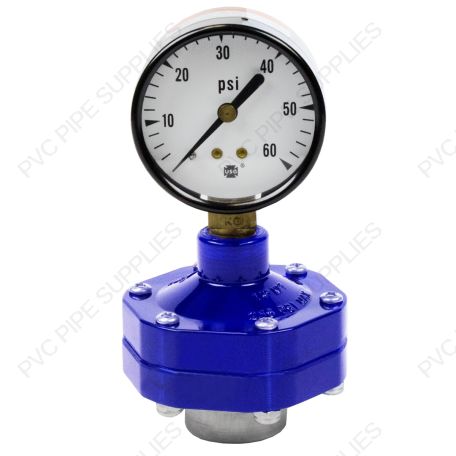

1/4" Spears PVC Low Extractable 15 PSI Gauge Guard FKM, G0153-002BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Additional Information
| MPN | G0153-002BL | ||||
|---|---|---|---|---|---|
| Inventory Type | N25 | ||||
| Type | Gauge Guard | ||||
| Fitting Type | Gauge Guard | ||||
| Size | 1/4" | ||||
| Connection Type | FPT | ||||
| Diaphragm Material | FKM | ||||
| Material | PVC | ||||
| Max Pressure | 235 PSI (10.3 bar) @ 70˚F (21˚C) | ||||
| Working Pressure | 15 PSI | ||||
| Color | Blue | ||||
| Technical Data | Spears G0153-002BL Technical Data | ||||
| Dimensions Image | |||||
| Dimensions |
|
Documents

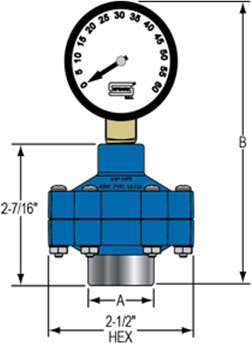

Dimensions
| A | 7/8" |
|---|---|
| B | 4-13/16" |
