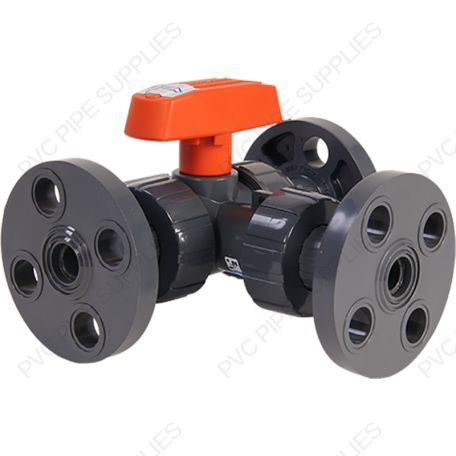

2-1/2" Hayward LA Series 3-Way Lateral True Union PVC Ball Valve

$887.99

Quick Overview

SKU: LA1250F

2-1/2" Hayward LA Series 3-Way Lateral True Union PVC Ball Valve w/Flanged ends, FPM O-rings
OR

Details

LA Series lateral 3-way ball valves are available in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.

Additional Information

SKU LA1250F
Manufacturer Hayward
Type Ball Valve
Style 3-Way True Union
Series LA Series
Valve Type True Union Ball Valve
Valve Size 2-1/2"
Valve Connection Type Flanged
Material PVC
Seal Type Double O-Ring Stem
Seal Material FPM
Seat Material PTFE
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377832878
Installation Manual Hayward LA1250F Installation Manual
Technical Data Hayward LA1250F Technical Data
Dimensions Image Hayward LA1250F Drawing
