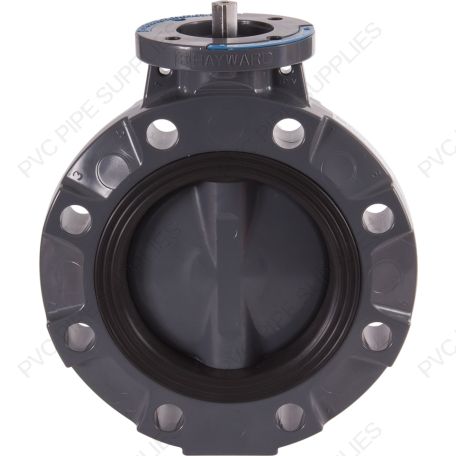

2" Hayward BYV Series PVC Butterfly Valve, ECP Series Actuated


2" Hayward BYV Series PVC Butterfly Valve, w/GFPP ECP Series Actuator Installed

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in Viton, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever design which features a 72 spline interlock mechanism allowing for 19 stopping positions every 5 degrees. Additionally, the hand lever material incorporates a UV inhibitor for enhanced performance in outdoor applications.

Inventory Type DS
Manufacturer Hayward
Type Butterfly Valve
Style ECP Series Actuated
Series BYV Series
Valve Size 2"
Material PVC
Disc Material PVC
Seal Material FPM
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377349109
Ratings & Standards NSF/ANSI 61
Installation Manual Hayward ECPBYV11020V Installation Manual
Technical Data Hayward ECPBYV11020V Technical Data
