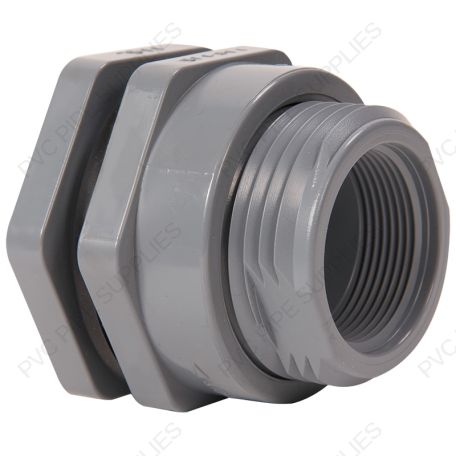

Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe,quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.
Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA Series.
|Connection Type||Socket x Threaded|
|Max Pressure||150 PSI (10.3 bar) @ 70˚F (21˚C)|
|Technical Data||Hayward BFAS2007CFS Technical Data|
|Dimensions Image||Hayward BFAS2007CFS Drawing|
