4" Schedule 80 PVC Solid Flange Socket, 851-040
Details
4 COMP FLANGE S, 851-040
Additional Information
| MPN | 851-040 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inventory Type | N25 | ||||||||||
| Type | Schedule 80 Fitting | ||||||||||
| Style | Flange | ||||||||||
| Profile | Solid | ||||||||||
| Schedule | Schedule 80 | ||||||||||
| Size | 4" | ||||||||||
| Connection Type | Socket | ||||||||||
| Material | PVC | ||||||||||
| Maximum Temperature | 140° F (60° C) | ||||||||||
| Box Qty | 5 | ||||||||||
| Pallet Qty | 240 | ||||||||||
| UPC Code | 025528722067 | ||||||||||
| Color | Gray | ||||||||||
| Ratings & Standards | ASTM D1784, ASTM D2467, NSF Approved | ||||||||||
| Application | Potable Water | ||||||||||
| Dimensions Image | 851-040 | ||||||||||
| Dimensions |
|
Documents

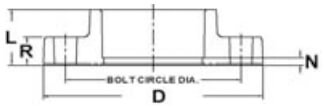

Dimensions
| L | 2-1/2" |
|---|---|
| N | 1/4" |
| R | 1" |
| Bolt Circle Dia. | 7-7/16" |
