6" Model 72 Eaton Simplex Strainer - ST0720600R2C

SKU: ST0720600R2C
Color: Gray

Customizable Options:

Details

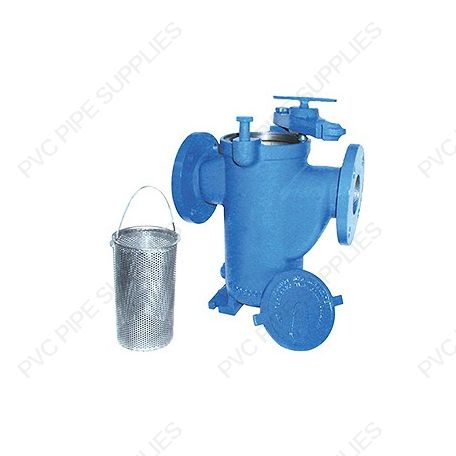

Model 72 6" Eaton Simplex Strainer with Flanged connection and Stainless Steel body

The Eaton Model 72 has been the industry standard simplex basket strainer for more than 75 years. It is perfect for industrial and commercial applications in which the line can be temporarily shut down for strainer basket cleaning or changeout.

A reason for its popularity is the unusually large basket capacity. The free straining area with a perforated basket is a minimum of six times the cross sectional pipe area. No tools are needed to open the cover. The quick opening, swinging yoke can be disassembled and the basket removed in seconds. On sizes 4" and larger, a special cover clamp is provided to distribute the seating pressure and to ensure positive seating of the cover.

Another feature is a threaded drain on every size strainer (fitted with a yoke quickcloser). Sizes 2" and larger are equipped with legs that bolt to the floor for rock solid installation.

Wall thicknesses are exceptionally heavy. The basket seats are precision machined to give a tight seal and prevent any material from bypassing the basket. The Eaton Model 72 simplex basket strainer is a top quality, heavy-duty unit designed to stand up to the most demanding of applications.

Features:
  • Quick open cover—no tools needed
  • Heavy wall construction
  • Large capacity baskets
  • Machined basket seat
  • Threaded drain
  • Mounting feet for stable installation for flanged units 2" and larger
  • Perforated or mesh 316 stainless steel basket
  • American Bureau of Shipping (ABS) Type Approved for ship designers, builders and owners

Additional Information

MPN ST0720600R2C
Inventory Type INV
Manufacturer Eaton
Type Basket Strainer
Style Simplex
Strainer Size 6"
Strainer Connection Type Flanged
Material Stainless Steel
Seal Material Viton
Max Pressure 200 PSI (13.8 bar) @ 100˚F (38˚C)
Color Gray
