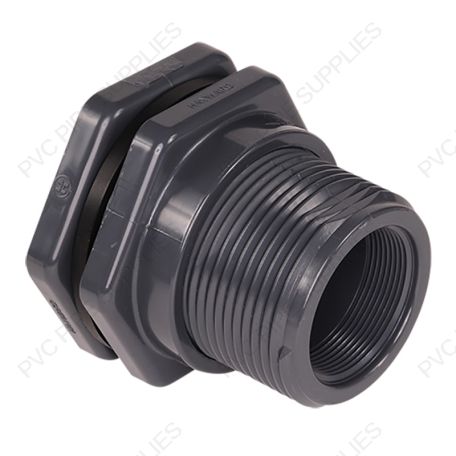

6" Hayward BFA Series PVC Bulkhead Fitting w/Socket x Threaded ends, Standard Base




Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe, quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.

BFA Series bulkhead fittings offer a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC and PP. Gaskets are FPM or EPDM. Large flange option is available.

Inventory Type DS
Manufacturer Hayward
Type Bulkhead Fitting
Series BFA Series
Schedule Schedule 80
Size 6"
Connection Type Socket x Threaded
Material PVC
Seal Material Viton
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
UPC Code 0610377089722
Installation Manual Hayward BFA1060CFS Installation Manual
Technical Data Hayward BFA1060CFS Technical Data
Dimensions Image Hayward BFA1060CFS Drawing
