8" Horizontal Flow Acrylic Flow Meter (500-1900 GPM), F-30800P

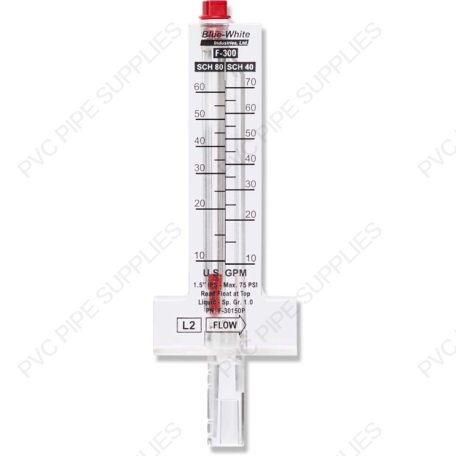

Main image
Click to view image in fullscreen
![]()
Details
- Model Variations:
- F-300 = Horizontal flow
- D-300 = Vertical down flow
- U-300 = Vertical up flow
- Well suited for closed pipe installations
- Easy to read dual scale (GPM / LPM), screen printed on both sides of the meter body
- Acceptable for outdoor installations (direct sunlight okay)
- Pitot Tube (impact tube) design makes it easy to install on existing pipe
- One piece, machined acrylic meter body, annealed for added strength and chemical resistance
- Included SS clamps and gasket seal
- Standard and Low Flow options available
- For use on PVC or Copper Pipes (refer to literature)
F-300 500-1900 GPM 8.00" PIPE, F-30800P
Additional Information
| MPN | F-30800P |
|---|---|
| Inventory Type | DS |
| Manufacturer | Blue White |
| Model Number | F-300 |
| Flow Meter Size Summary | 8" |
| Flow Meter Body Material | Acrylic |
| Flow Meter O-Ring Material | Neoprene |
| Flow Meter Float Material | 316 SS |
| Material | Acrylic |
| Max Pressure | 75 PSI (5.17 bar) @ 70˚F (21˚C) |
| Maximum Temperature | 190˚F (88˚C) @ 0 PSI |
| Flow Range | 500-1900 GPM |
| Color | Clear |
| Accuracy | +/- 10% |
| Application State | Liquid |
| Application Pipe Type | Schedule 40 |
| Installation Manual | |
| Technical Data |
