A well designed irrigation system relies on more than just high quality pipes—good irrigation lines depend on the small components that connect everything. PVC pipe fittings are the essential hardware that joins pipes, directs water flow, and allows for complex layouts so pipelines can be run where needed. Choosing the wrong fitting can lead to leaks, pressure loss, and system failure, turning a promising project into a frustrating repair job.
Understanding the different types of PVC fittings and their specific uses is important for anyone working with irrigation, from professional contractors to dedicated DIY homeowners. This guide provides a clear overview of the most common PVC irrigation fittings, explains their functions, and how to select the right ones for your project.
Types of PVC Fittings for Irrigation
PVC fittings come in a wide range of shapes and sizes, and each is engineered for a specific purpose. Whether you need to connect long runs of pipe, change direction, or split the water flow, there is a fitting made for the job. Here are the most common pipe fitting types for irrigation systems.

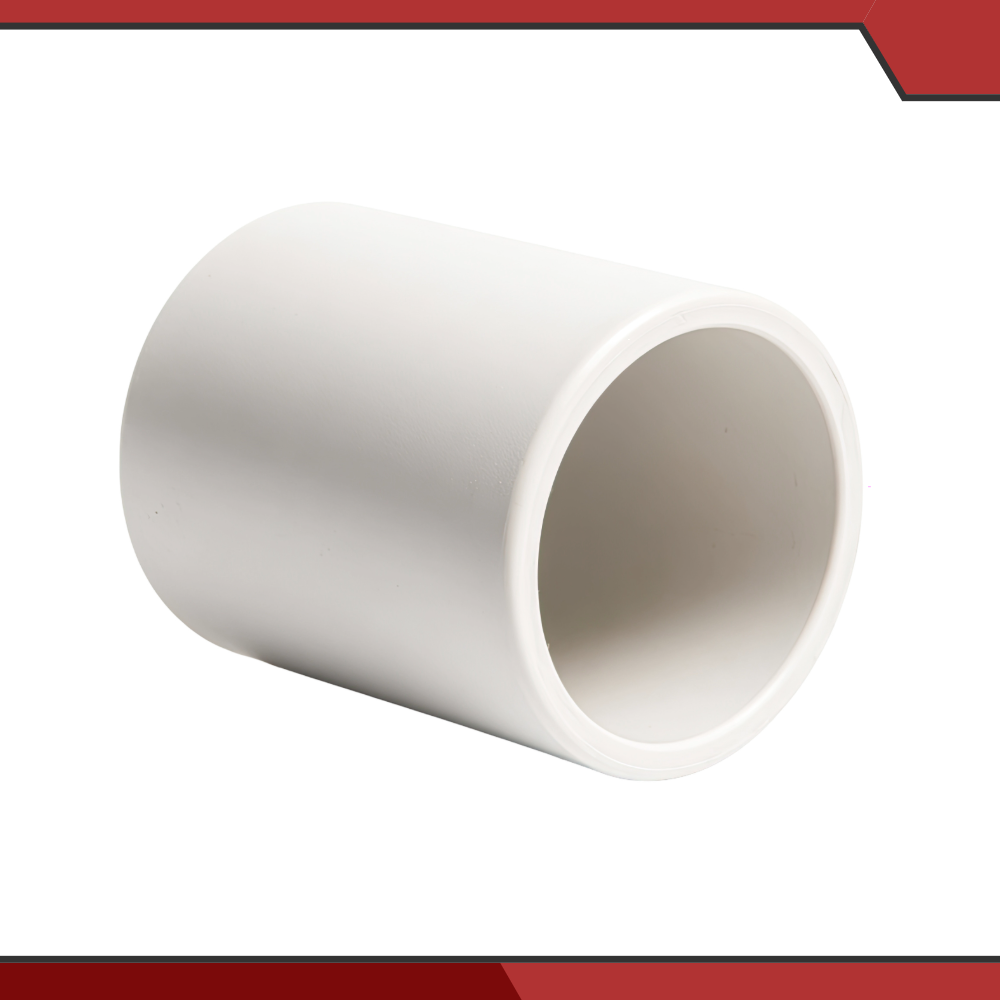

Couplings
Couplings are one of the most basic but essential fittings. They are used to connect two pieces of PVC pipe together in a straight line. Use them to join long sections of pipe or to repair a cracked or broken line without rerouting the entire system.

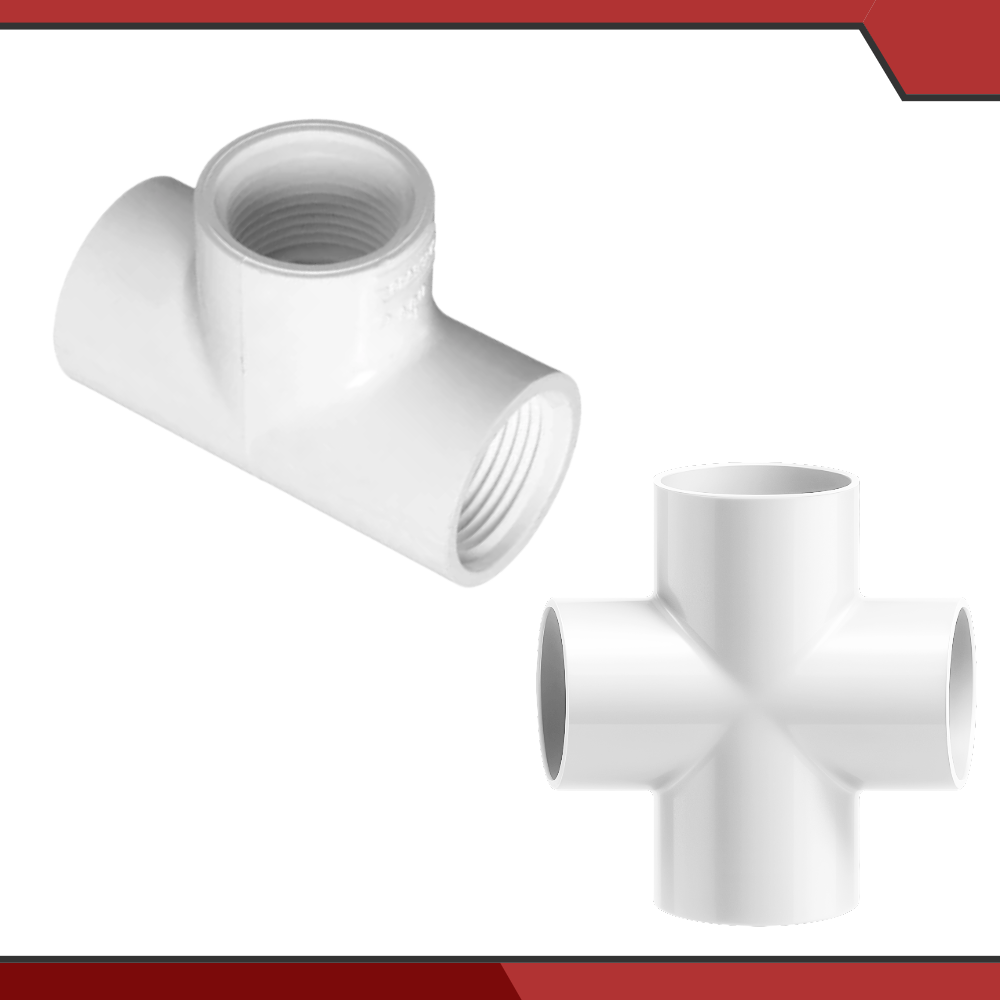

Tees and Crosses
Tees and crosses are used to branch a single water line into multiple directions.
- Tees have three openings, creating a T-shape that splits the flow into two separate lines at a 90 degree angle. They are ideal for running lateral lines off a main supply pipe.
- Crosses feature four openings, allowing you to split a single line into three or join four pipes at a central point. They are useful for creating complex grids in drip or sprinkler systems.

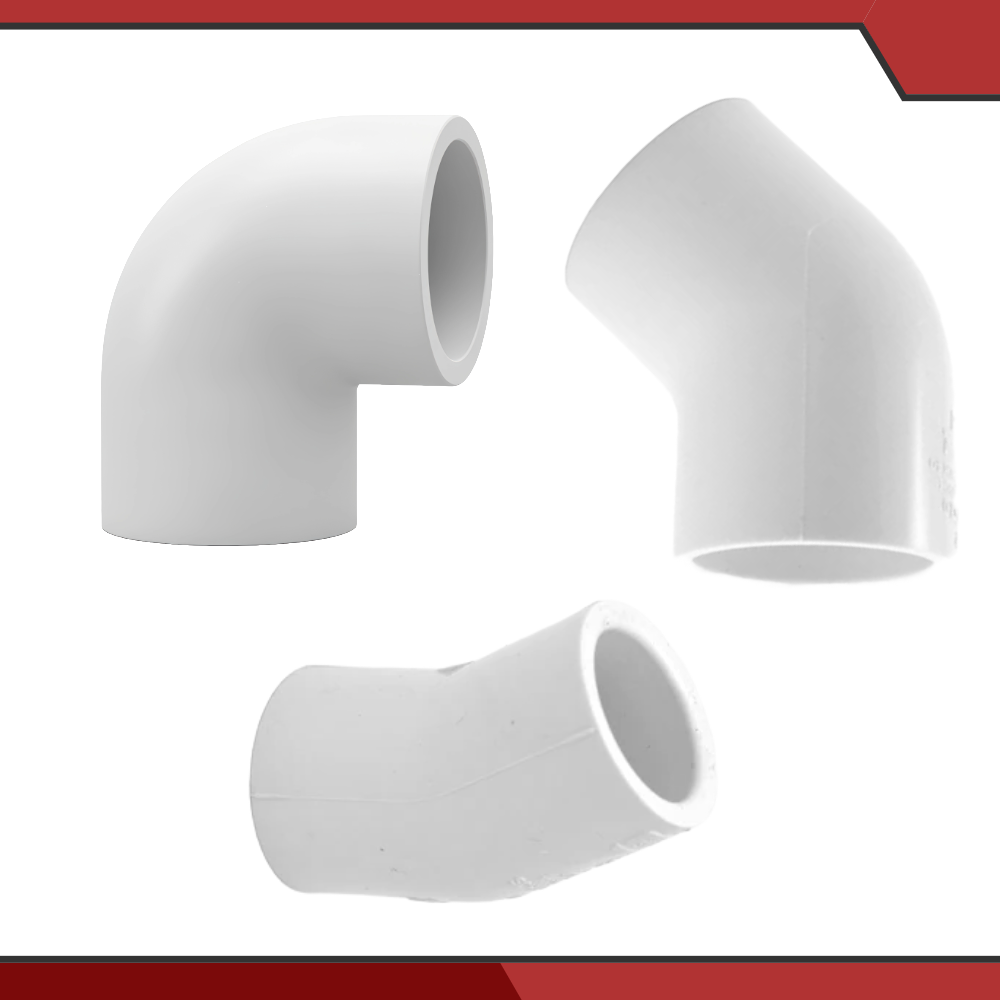

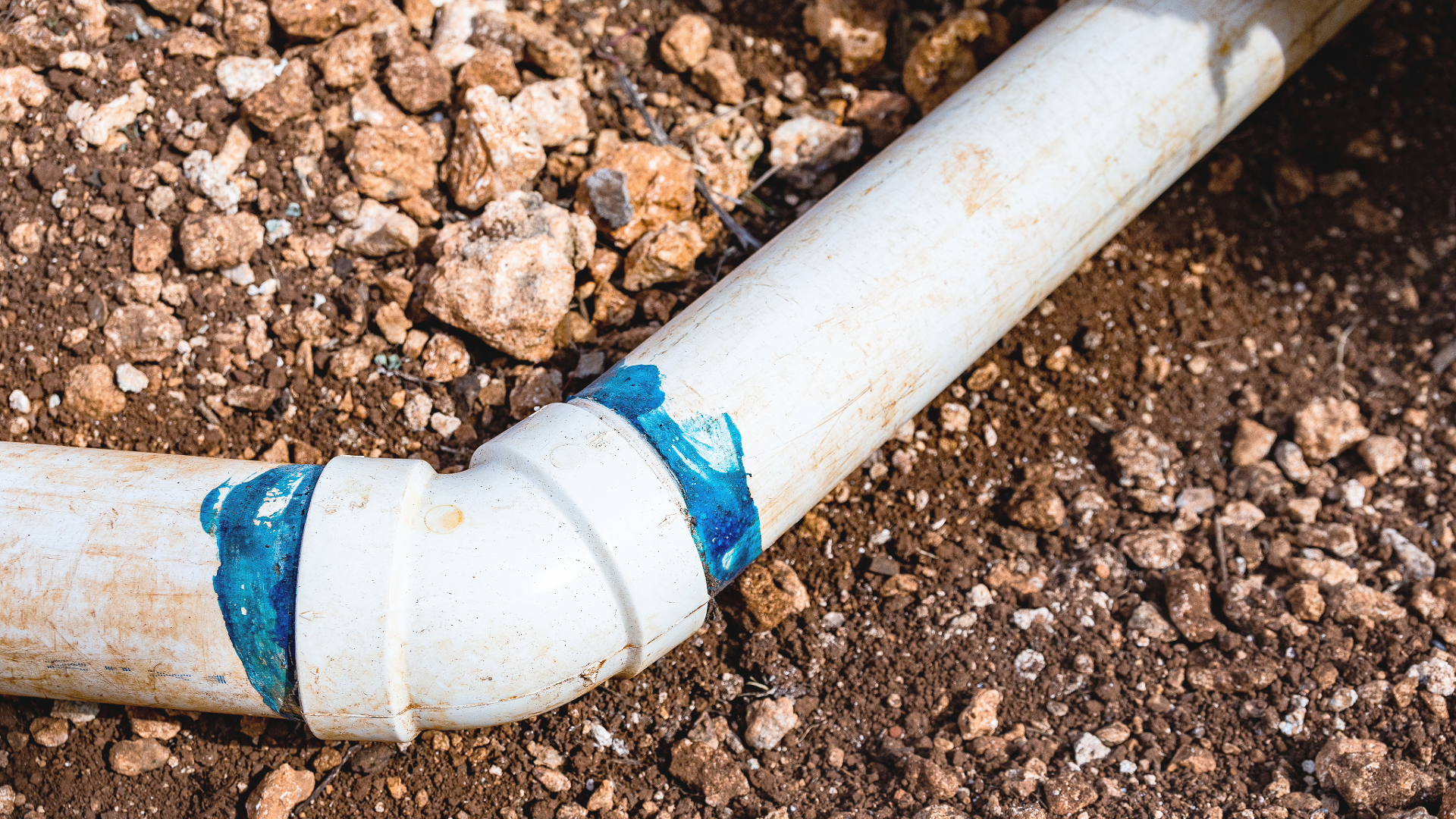

Elbows
Elbows are used to change the direction of a pipe run. The most common types are 90 degree and 45 degree elbows that help navigate corners and obstacles. Using PVC pipe elbows will ensure a smooth flow of water and prevent the pressure drop that can occur from sharp turns.

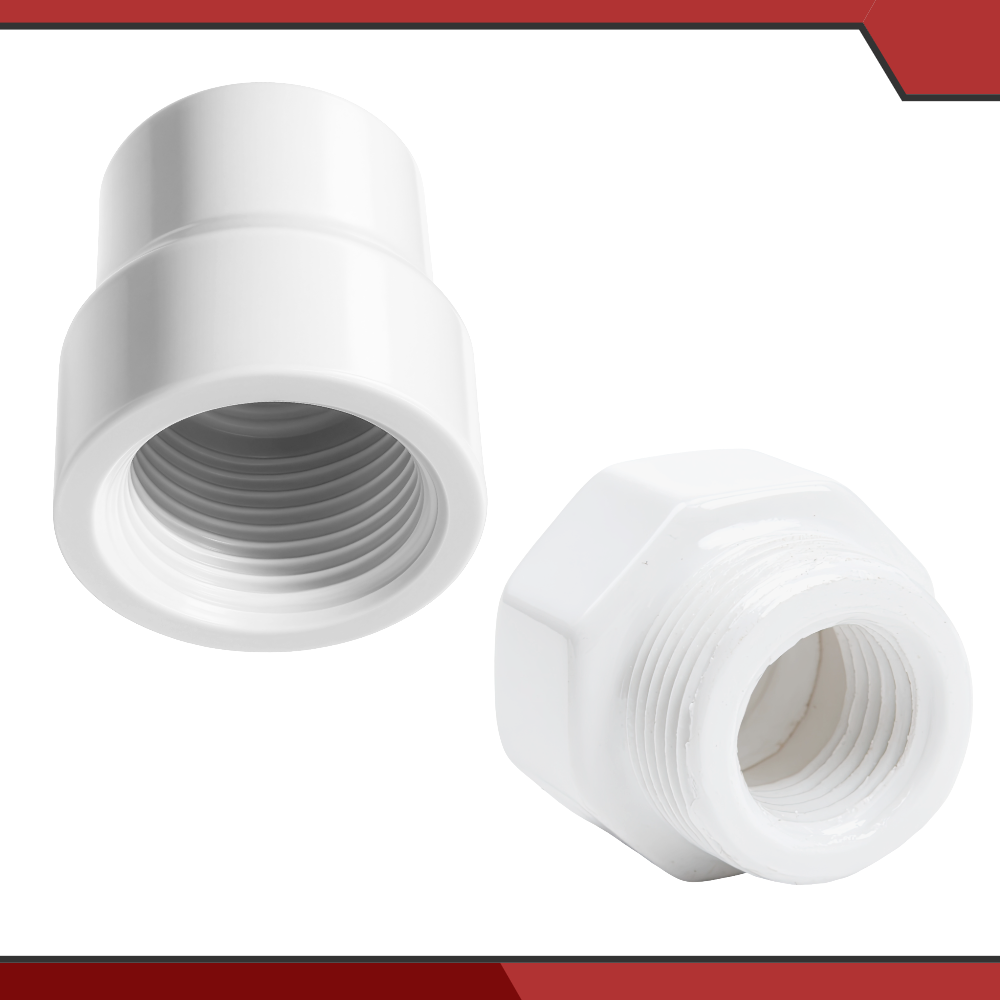

Adapters and Bushings
Adapters and bushings are used to connect pipes of different sizes or with different end types.
- Adapters connect pipes with different end types, such as joining a slip socket (smooth) end to a threaded end.
- Bushings fit inside a larger fitting to reduce its diameter and allow connection to a smaller pipe. For example, you can use a bushing to step down from a 1 inch pipe to a 3/4 inch pipe.

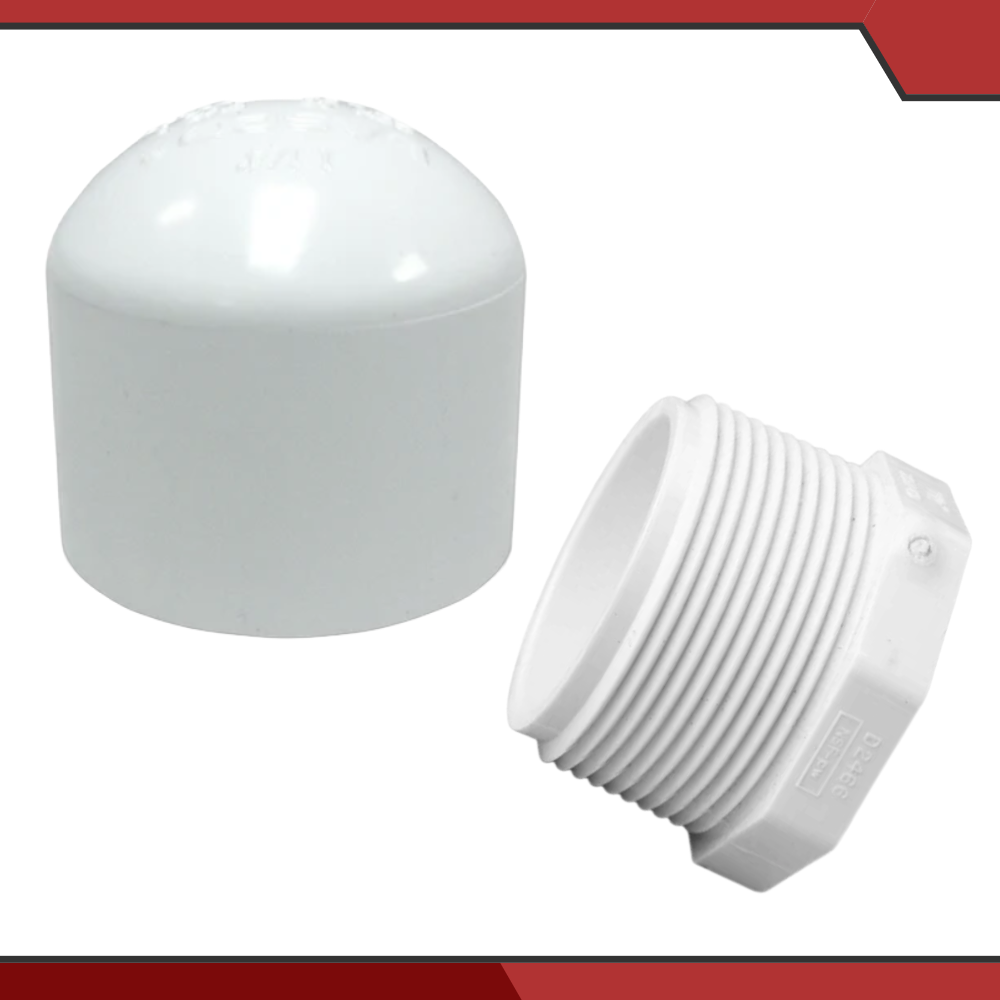

Caps and Plugs
To close off or end a pipe run, you will need either a cap or a plug.
- Caps fit over the end of a pipe to seal it. They are often used at the end of lateral lines in an irrigation system.
- Plugs fit inside a fitting to seal an opening. They are useful for closing off unused ports on a tee or cross.

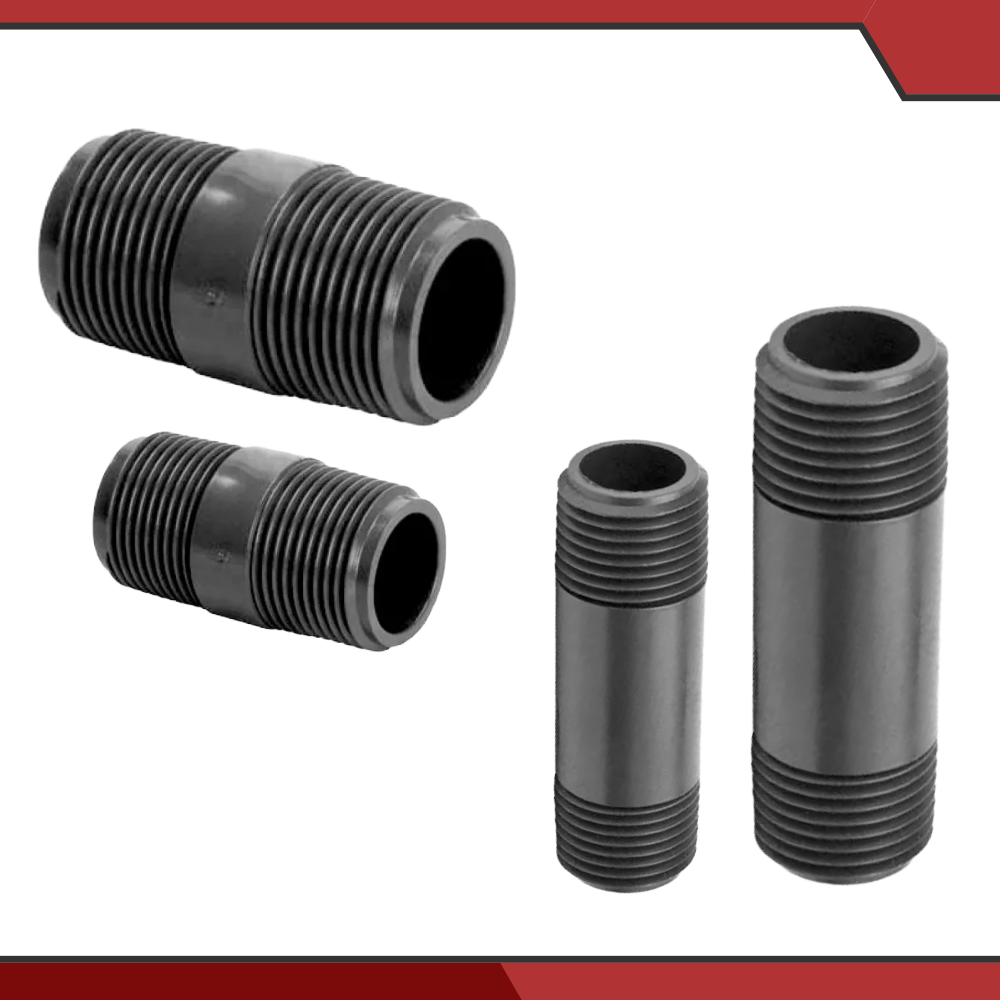

Nipples and Risers
Nipples and risers are short pieces of pipe, typically threaded on both ends, that are used to extend a connection or make connections between pipes and parts. In irrigation, they are commonly used to connect sprinkler heads or other components to underground pipes and to help raise them to the desired height above the ground.
Valves

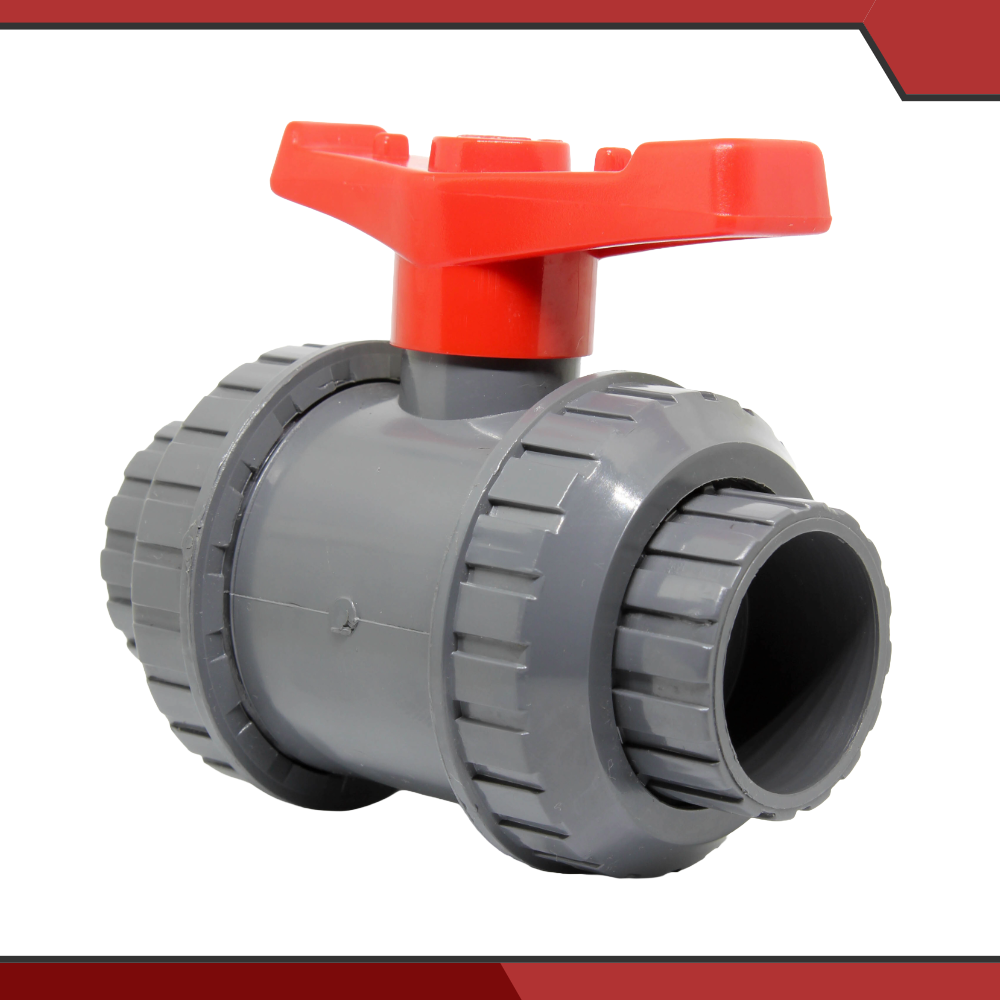

Valves are used to control water flow. Ball valves are a popular choice for irrigation because they offer a simple and reliable way to turn the water supply on or off with a quick turn of the handle. Check valves are equally important and are used to automatically prevent backflow and protect your water source from contamination.
Uses of PVC Fittings in Irrigation Systems

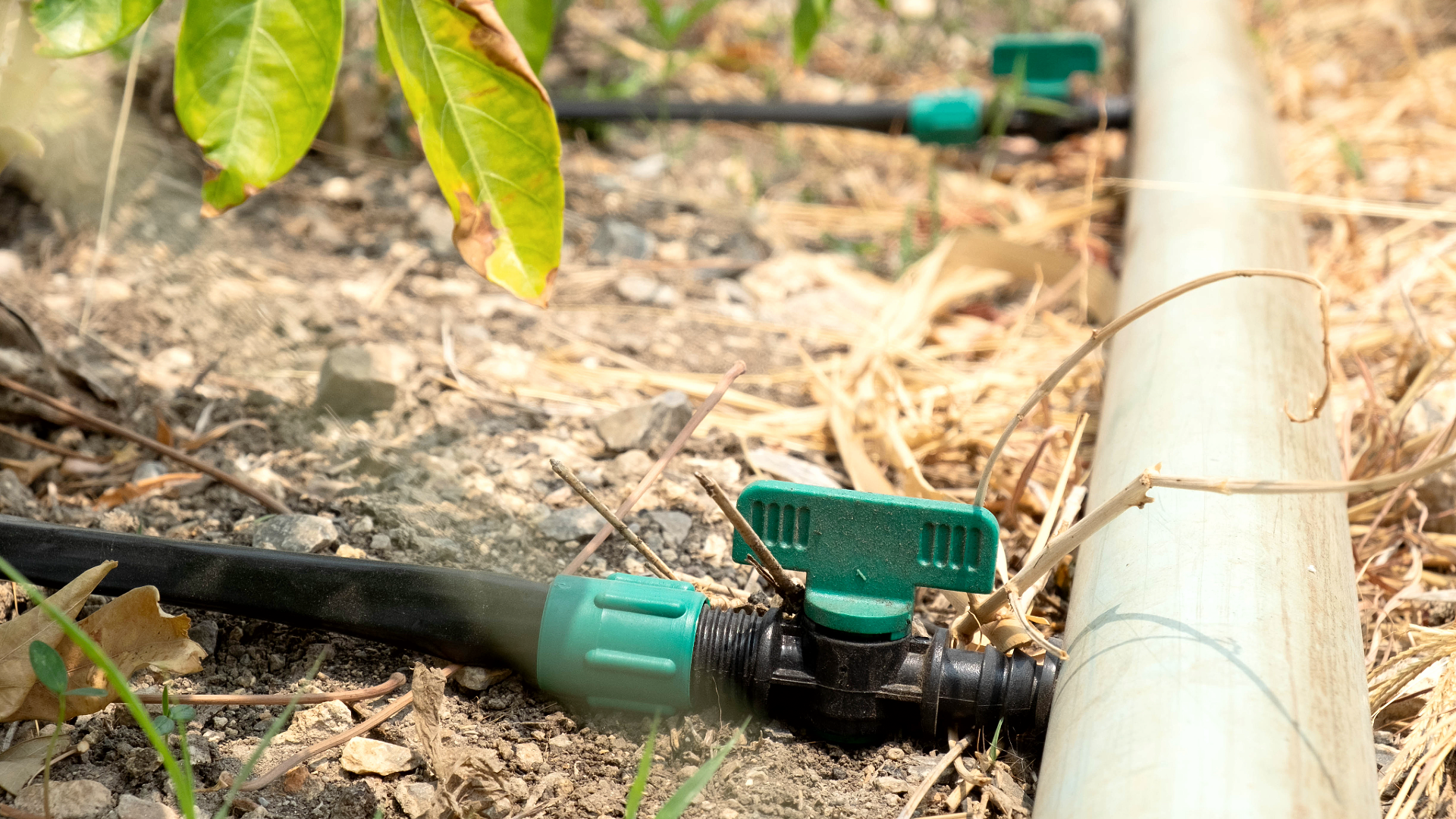

Picking the right fittings is key to making your irrigation system work well. They provide the flexibility to change the layout for any yard, making sure water gets to where you want it.

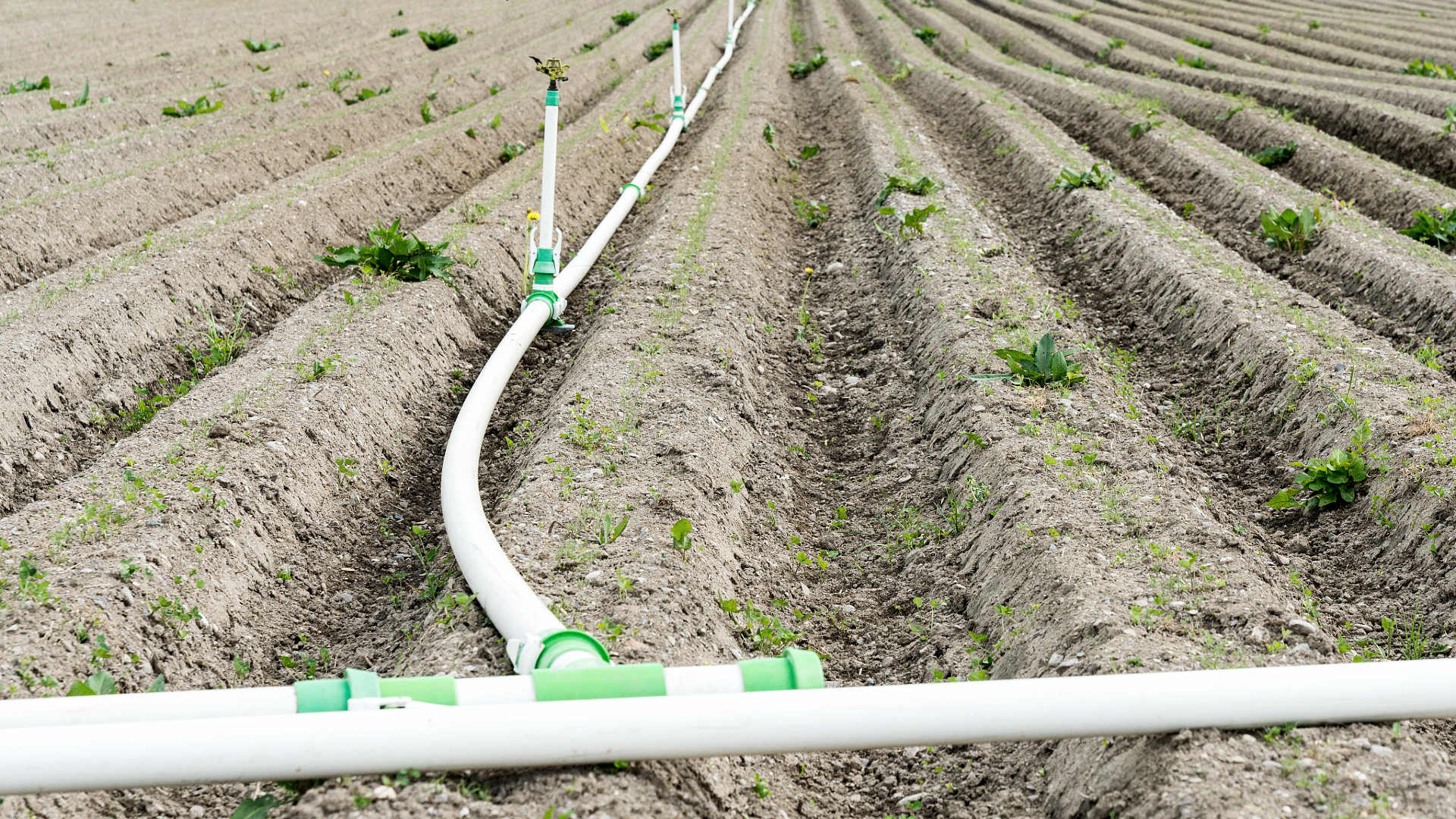

- Water Distribution: Tees, crosses, and elbows allow you to create a network of pipes that channels water from the main source to different irrigation zones for garden beds, lawns, and other landscaped areas.
- Flow Control: Ball valves give you manual control over individual zones or full systems and allow repairs or adjustments without shutting down the entire system. Check valves protect the system by preventing irrigation water from flowing back into the clean water supply.
- Leak Prevention: High quality, properly installed caps and plugs provide secure, watertight seals at the end of pipes or fittings to prevent costly water loss and pressure throughout the system.
- System Flexibility: Fittings like unions, nipples, bushings, and adapters make it easy to modify, expand, or repair your irrigation system.
Choosing the Right PVC Fittings
Choosing the right fittings involves more than just matching the pipe size. You also need to consider the pipe schedule and overall system design. PVC pipe and fittings are categorized by a "schedule" number, which indicates the thickness of the pipe wall. The most common pipe schedule used in irrigation is Schedule 40 and sometimes Schedule 80.
- Schedule 40: This is the most common type for residential and light commercial irrigation. It has thinner walls and is suitable for systems with standard water pressure.
- Schedule 80: With thicker walls, Schedule 80 is designed for higher pressure applications and is often used in industrial or heavy commercial systems where greater durability is required.
For consistent performance and strength, it is best practice to use the same schedule for both your pipes and fittings.
Build Your System with Confidence
At PVC Pipe Supplies, we offer a full selection of high quality fittings to complete any irrigation project. Our inventory includes all the essential parts needed to build a reliable system from the ground up.
We stock a full range of standard fittings, including couplings, tees, elbows, adapters, caps, and plugs in both Schedule 40 and Schedule 80. In addition, we offer specialized products like true union ball valves for easy maintenance and swing check valves for dependable backflow prevention. Our fittings are USA made from premium materials for long lasting performance under repeat use and underground installation.
PVC fittings are the building blocks of an irrigation system. Ready to start building? Explore our selection of professional grade PVC fittings from PVC Pipe Supplies and find everything you need for your next irrigation project.
