Choosing the right materials is essential for the success and longevity of any plumbing project. For contractors, system designers, and DIYers, PVC pipe is a trusted choice due to its strength, durability, and low cost. However, not all PVC is the same. While standard white PVC is the most common option, clear PVC offers unique advantages that make it ideal for specific use cases.
Both clear and white PVC pipes share a core set of performance properties, but their individual features make them suitable for different jobs. White PVC is the standard go-to for general plumbing, drainage, waste handling, venting, and irrigation. Clear PVC provides the valuable benefit of easy visual monitoring that makes it a perfect specialty product for applications where seeing inside the pipe is helpful or fully necessary.
This guide compares clear PVC pipe vs white PVC pipe to break down their differences in materials, strength, ideal applications, and other important points.

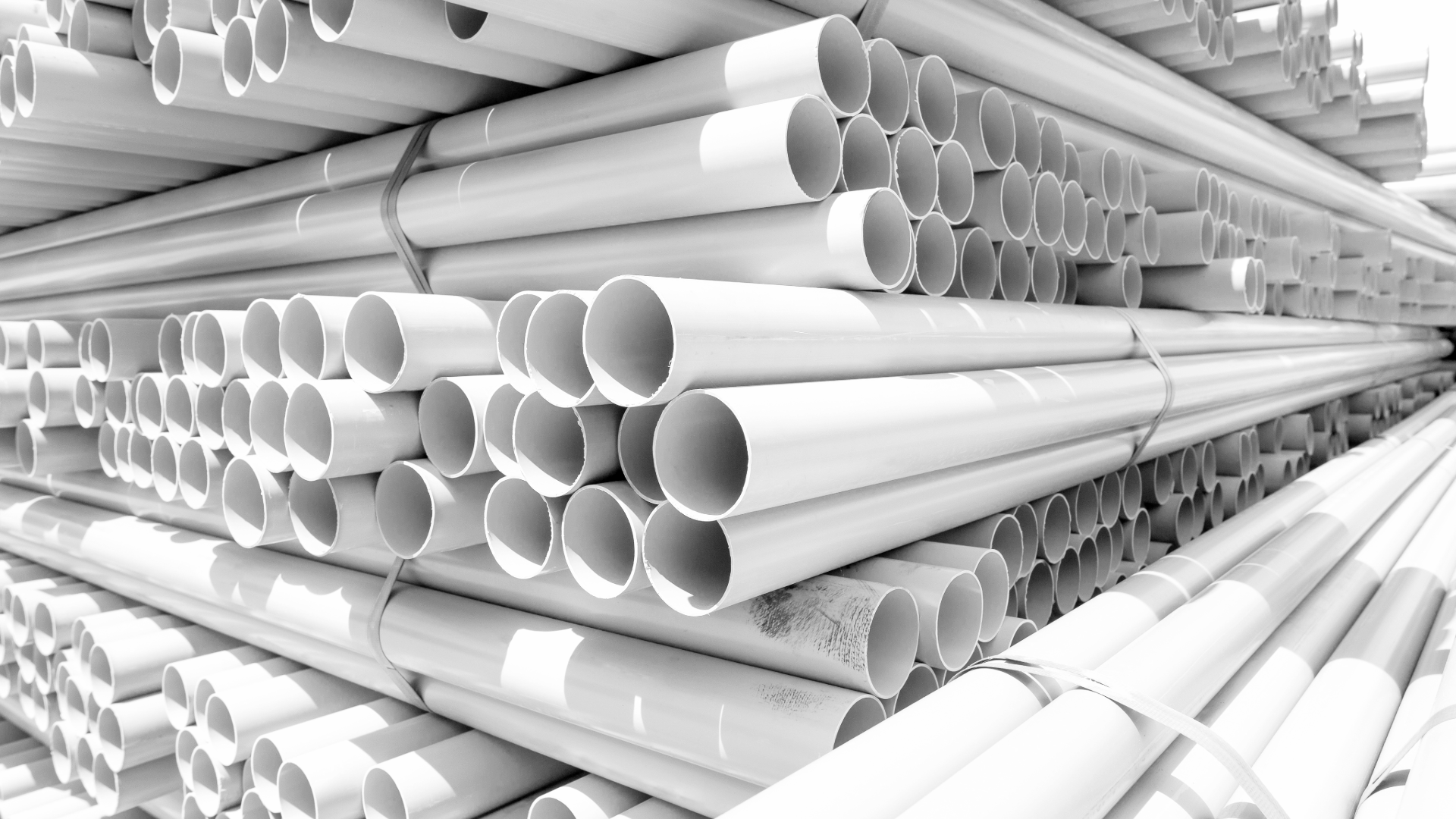

What is White PVC Pipe?
White PVC pipe is one of the most widely used plumbing materials in the world. It's a thermoplastic known for its rigidity, chemical resistance, versatility, and reliability. Standard white PVC pipe is an opaque (non-transparent), budget friendly solution for a wide range of fluid handling uses, from residential plumbing to large scale irrigation systems. Its familiarity and easy availability make white PVC a common choice for many applications.
Material Composition and Features
White PVC pipe is made from a combination of ethylene and chlorine. The manufacturing process results in a strong, lightweight, and corrosion resistant material. At PVC Pipe Supplies, our white Schedule 40 PVC pipe passes ASTM D1784 standards and is NSF approved for potable water service, ensuring it is safe for drinking water uses.
Key Specifications:
- Schedule: Primarily available in Schedule 40, which is suitable for drainage, pressurized water flow, and chemical distribution.
- Temperature Limit: Can safely handle temperatures up to 140°F (60°C).
- Sizes: Available in a wide range of sizes, from 1/2 inch to 24 inch diameters.
- Lengths: Comes in standard 10 foot and 20 foot sections with 5 foot sections available in most common sizes for more economical shipping.
- Installation: Installed using a simple primer and solvent cement system, which creates a strong, permanent bond. Plain end pipes require couplings to connect sections.
Common Applications for White PVC Pipe
Due to its versatility and affordability, white PVC pipe is a staple across numerous industries and settings. Its durability makes it ideal for both underground and above ground installations where visual monitoring of the pipeline interior is not required.
- Residential and Commercial Plumbing: Used extensively for drain, waste, and vent (DWV) pipe systems.
- Irrigation Systems: A popular choice for agricultural fields, golf courses, and residential sprinkler systems.
- Drainage: The effective management of stormwater and other drainage needs.
- DIY Projects: Its ease of use and low cost make it perfect for various home projects.

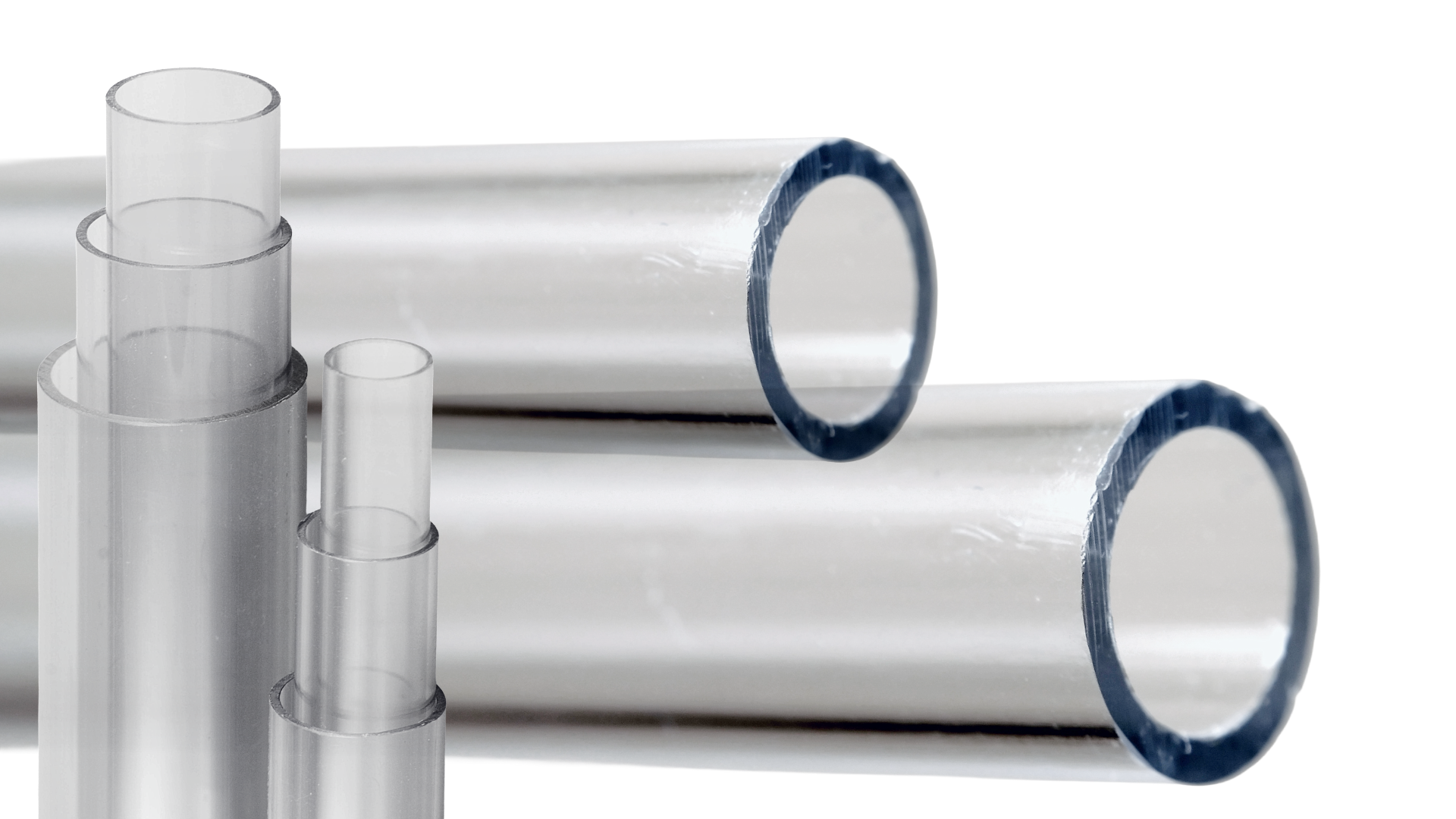

What is Clear PVC Pipe?
Clear PVC pipe offers all the strength and durability of standard PVC with one major advantage: transparency. While not perfectly transparent like glass, it provides enough visual clarity for monitoring fluid flow and the conditions inside the pipeline. This feature makes clear PVC pipe an indispensable material for applications where process monitoring, cleanliness, and quality control are high priorities.
Material Composition and Features
Like its white counterpart, clear PVC is made from the same base thermoplastic material. However, the manufacturing process is more complex and requires greater care to achieve its signature transparency. This specialized process and the pipe’s lower market demand contribute to a higher cost compared to white PVC. Our clear PVC pipe and fittings are made from FDA approved materials, making them safe for contact with food and beverages, and other high purity ingredients.
Key Specifications:
- Schedule: Most commonly available in Schedule 40.
- Temperature Limit: Rated for use in temperatures from 32°F to 140°F (0°C to 60°C).
- Sizes: Offered in sizes from 1/4 inch to 12 inch diameters.
- Lengths: Typically sold in 10 foot sections; some 5 foot sections are available.
- Compatibility: Fully compatible with standard white PVC pipes and fittings of the same schedule and size.
Common Applications for Clear PVC Pipe
Clear PVC is the material of choice when you need to keep an eye on what’s happening within your plumbing system. Its applications are often specialized and typically found in controlled environments.
- Food and Beverage Processing: Allows for monitoring of liquid ingredients to ensure pipelines remain at top quality to prevent contamination.
- Laboratories and Medical Facilities: Used in research and medical settings where observing the movement and state of fluids is vital for experiments and patient care.
- Aquariums and Aquaculture: Allows professional aquarium operators and fish farmers to monitor water clarity and flow to ensure the health of aquatic life.
- Pool and Spa Systems: Helps identify when a filter backwash is complete by easy visualization of when the discharged water runs clear.
- Secondary Containment: Ideal for "pipe-in-pipe" systems, as the outer clear pipe allows for immediate visual detection of leaks from the inner pipe.
Clear PVC vs White PVC: A Head-to-Head Comparison
While both pipes are made from PVC, their differences in transparency, cost, and typical uses are what set them apart. Here’s a breakdown of each:
Transparency
This is the most obvious difference. White PVC is opaque, which hides the contents of the pipe completely. Clear PVC allows you to see inside the pipeline, which is its primary selling point. This feature allows troubleshooting blockages, monitoring fluid characteristics, and ensuring system cleanliness.
Cost
Due to its simpler and more straightforward manufacturing process, white PVC is much more affordable than clear PVC. The specialized production and handling needed to maintain the clarity of clear PVC make it a premium product with a higher price tag. However, in applications where visual monitoring is essential, the added cost is often justified.
Applications
White PVC is a general purpose pipe used for a broad range of standard plumbing applications like irrigation, drainage, and DWV systems. In contrast, clear PVC is a specialty product. It is used in targeted applications where visual inspection adds value, such as in food production, labs, and high end aquatic systems.
Availability
White PVC is widely available in a vast selection of sizes, lengths, and schedules from virtually any hardware or supply store. Clear PVC is less common. It is typically sold by specialized industrial suppliers and may have a more limited range of available sizes and fittings.
Making the Right Choice for Your Project
Choosing between clear and white PVC pipe can be simplified down to one simple question: Do you need to see what’s flowing through your pipes?
- Choose White PVC Pipe for general purpose plumbing projects where cost is a major factor and visual monitoring is unnecessary. It is the perfect choice for irrigation, drainage, and standard water transport.
- Choose Clear PVC Pipe when your application requires visual inspection for quality control, safety, or process monitoring. It is the ideal solution for labs, food processing, large pools and water parks, aquariums, and any system where transparency can prevent costly errors or downtime.
For projects that only require monitoring at specific points, a hybrid approach can be effective. You can construct the majority of a system with lower cost white PVC and install sections of clear PVC at key inspection points.
Your Partner for Quality PVC Solutions
Whether your project calls for the standardized utility of white PVC or the specialization of clear PVC, having the right pipe product makes the difference. PVC Pipe Supplies offers a comprehensive selection of high quality pipes and pipe fittings to meet the demands of any application. Our products are USA made by leading manufacturers and engineered for reliable, long lasting performance.
Explore our full range of PVC pipe to find the perfect solution for your needs. For expert guidance or to request a bulk order contractor quote, contact us today and let our team help you optimize your fluid management systems.
