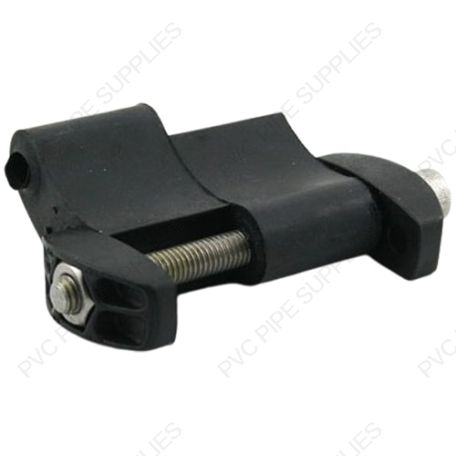

LS-360-S Link Seal, Stainless Steel
Main image
Click to view image in fullscreen
calcActive())">
SKU:
LS-360-S
**Important Note** All Link Seals are sold as individual links. Therefore multiple links are required to create a seal around your pipe. Please see the Link Seal Sizing Chart in order to determine what size and how many links are required for your application.
The LS-360-S is a modular seal for sealing cylinderical objects through concrete walls. The LS-360-S has Stainless Steel hardware.
The LS-360-S is a modular seal for sealing cylinderical objects through concrete walls. The LS-360-S has Stainless Steel hardware.
$22.99
Details
LS-360-S Link Seals are designed to provide an easy, fast and affordable way to seal pipes of any size passing through walls, floors and ceilings. The S series comes standard with Stainless Steel nuts and bolts. Link Seals are made with a durable EPDM black rubber material and can handle temperatures that can reach up to 175 degrees F. These seals help to provide a positive hydrostatic seal, extends the life of the seal, saves time and money, protects against corrosion and is ISO approved.
Features and Benefits
- Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
- Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
- Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.
- Standard fasteners have a two-part zinc dichromate and proprietary corrosion inhibiting coating. Corrosion resistant 316 stainless steel available for maximum corrosion protection.
- NSF 61 and Factory Mutual Fire Approved materials available. Also carry a wide variety of approvals from various Federal agencies, associations, code groups, laboratories, and organizations.
- Manufactured in an ISO 9001:2000 certified facility.
- 16 sizes, color-coded EPDM, Nitrile, and Silicone elastomers may be used with various hardware options to match performance characteristics with service conditions.
Specifications
- Pressure resistant to 20psig (40 ft of head)
- Standard EPDM rubber (black)
- Oil Resistant Nitrile rubber (green)
- Temperature resistant Silicone rubber (gray)
- Low Durometer for fragile pipe EPDM rubber (blue) Shore 40 ± 5
- Hardware Options - S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
Resources
- Videos
- Approvals and Certifications
- CAD Files
- Installation Guides
- Literature
- Submittal Sheets
- Technical Manuals
- Technical Specifications
Link-Seal® / Century-Line® / Cell-Cast® Disk System
Link Seal® Installation
ISO 9001 Houston Certificate
CAD Version 2000 LINK-SEAL® Modular Seals with Cast or Cored Hole Opening
CAD Version 2000 LINK-SEAL® Modular Seals with Century-Line® Sleeves (HDPE)
CAD Version 2000 LINK-SEAL® Modular Seals with Model WS Wall Sleeves (Steel)
LINK-SEAL® Modular Seal Technical Data Submittal Sheet
GPT 1-8 LINK-SEAL® Modular Seals, Century-Line™ Sleeves, Cell-Cast™ Disks - Engineering Manual and Buyers Guide
LINK-SEAL® Modular Seals in Cored or Cast Holes-Technical Data Submittal Sheet LINK-SEAL® Modular Seals with Intermediate Sleeves - Technical Data Submittal Sheet
GPT 1-8 LINK-SEAL® Modular Seals, Century-Line™ Sleeves, Cell-Cast™ Disks - Engineering Manual and Buyers Guide
LINK-SEAL® Modular Seal Technical Data Sheet
Additional Information
MPN | LS-360-S |
---|---|
Inventory Type | N50 |
Manufacturer | Link Seal |
Material | Stainless Steel |
Seal Material | EPDM |
Hardware Material | S316 Stainless Steel and Zinc Dichromate Coated Steel |
