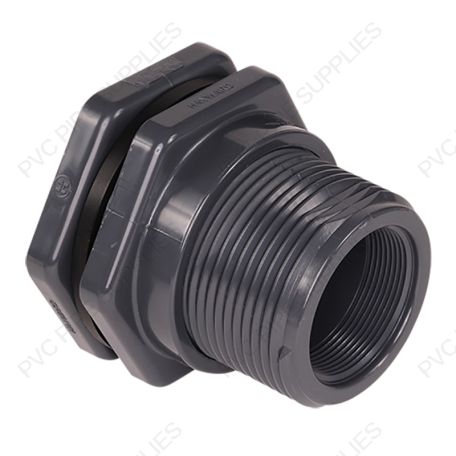

1/2" Hayward BFA Series PVC Bulkhead Fitting, Standard Base

SKU: BFA1005TES
Color: Gray

Details

Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe, quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.

BFA Series bulkhead fittings offer a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC and PP. Gaskets are FPM or EPDM. Large flange option is available.

Additional Information

MPN BFA1005TES
Inventory Type DS
Manufacturer Hayward
Type Bulkhead Fitting
Series BFA Series
Schedule Schedule 80
Size 1/2"
Connection Type Threaded x Threaded
Material PVC
Seal Material EPDM
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 36
UPC Code 0610377089098
Color Gray
Ratings & Standards NSF Approved
Installation Manual
Technical Data
Dimensions Image
