1/2" Hayward IQ Series PVC Injection Quill w/Threaded ends, FPM O-rings

SKU: IQ1050T03B
Color: Gray
1/2" Hayward IQ Series PVC Injection Quill w/Threaded ends, FPM O-rings

Details

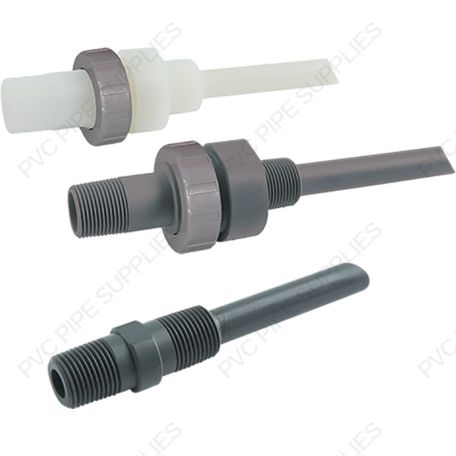

The IV Series Injection Valves and IQ Series Injection Quills facilitate injection of chemicals away from pipe or tank inner walls, ensuring rapid mixing and preventing corrosion. Each design includes a built-in ball check valve with Hastelloy CTM spring to prevent back-flow of the process liquid into the chemical feed line. Both the IV and IQ Series provide MNPT process connections with the IV featuring an union allowing the ball check to be rebuilt. All Injection Quills are available in PVC, CPVC and PVDF to match the widest range of chemicals.

Additional Information

MPN IQ1050T03B
Inventory Type DS
Manufacturer Hayward
Type Injection Valve
Style Injection Quill
Series IQ Series
Manufacturer Warranty 2 Year Warranty
Valve Type Injection Valve
Valve Size 1/2"
Valve Connection Type Threaded
Quill Bevel 45
Material PVC
Seal Type Double O-Ring Stem
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377304030
Color Gray
