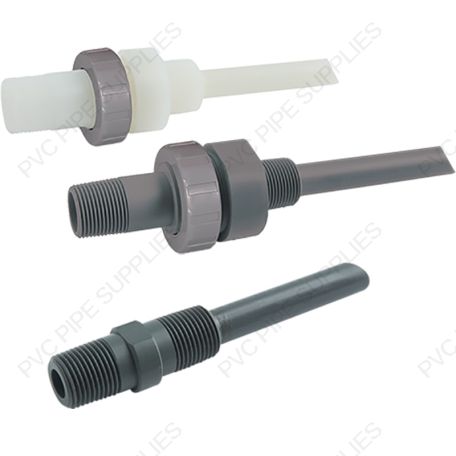

1" Hayward IV Series PVC Injection Valve w/Threaded ends, FPM O-rings

SKU: IV1100T04BV
Color: Gray
1" Hayward IV Series PVC Injection Valve w/Threaded ends, FPM O-rings

Details

The IV Series Injection Valves and IQ Series Injection Quills facilitate injection of chemicals away from pipe or tank inner walls, ensuring rapid mixing and preventing corrosion. Each design includes a built-in ball check valve with Hastelloy C™ spring to prevent back-flow of the process liquid into the chemical feed line. Both the IV and IQ Series provide MNPT process connections with the IV featuring an union allowing the ball check to be rebuilt. All Injection Quills are available in PVC, CPVC and PVDF to match the widest range of chemicals.

Additional Information

MPN IV1100T04BV
Inventory Type DS
Manufacturer Hayward
Type Injection Valve
Style Injection Valve
Series IV Series
Manufacturer Warranty 2 Year Warranty
Valve Type Injection Valve
Valve Size 1"
Valve Connection Type Threaded
Quill Bevel 45
Material PVC
Seal Type Double O-Ring Stem
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377304313
Color Gray
Technical Data
Dimensions Image
