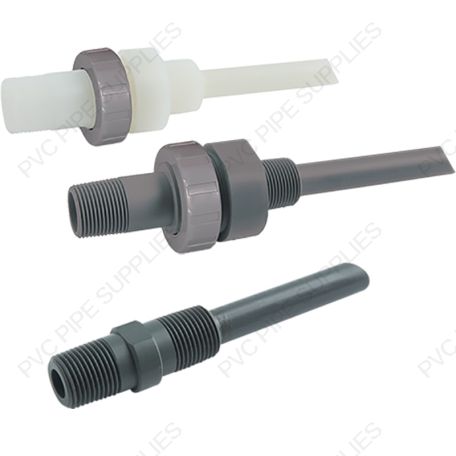

2" Hayward IV Series CPVC Injection Valve w/Threaded ends, FPM O-rings
Details
The IV Series Injection Valves and IQ Series Injection Quills facilitate injection of chemicals away from pipe or tank inner walls, ensuring rapid mixing and preventing corrosion. Each design includes a built-in ball check valve with Hastelloy C™ spring to prevent back-flow of the process liquid into the chemical feed line. Both the IV and IQ Series provide MNPT process connections with the IV featuring an union allowing the ball check to be rebuilt. All Injection Quills are available in PVC, CPVC and PVDF to match the widest range of chemicals.
Additional Information
MPN | IV2200T06BV |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Injection Valve |
Style | Injection Valve |
Series | IV Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | Injection Valve |
Valve Size | 2" |
Valve Connection Type | Threaded |
Quill Bevel | 45 |
Material | CPVC |
Seal Type | Double O-Ring Stem |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 1 |
UPC Code | 0610377304399 |
Color | Light Gray |
Technical Data | Hayward IV2200T06BV Technical Data |
