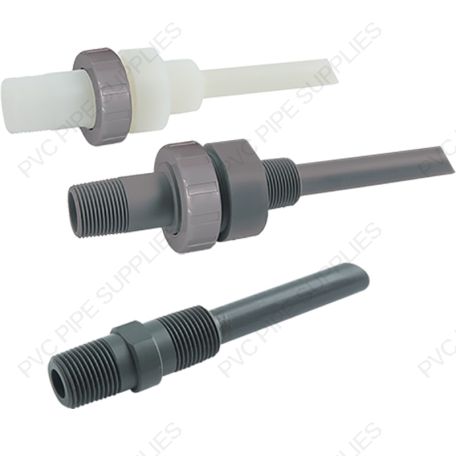

3/4" Hayward IQ Series PVDF Injection Quill w/Threaded ends, FPM O-rings
Main image
Click to view image in fullscreen

![]()

calcActive())">
SKU:
IQ5075T03B
Color:
Gray
3/4" Hayward IQ Series PVDF Injection Quill w/Threaded ends, FPM O-rings
$325.99
Details
The IV Series Injection Valves and IQ Series Injection Quills facilitate injection of chemicals away from pipe or tank inner walls, ensuring rapid mixing and preventing corrosion. Each design includes a built-in ball check valve with Hastelloy CTM spring to prevent back-flow of the process liquid into the chemical feed line. Both the IV and IQ Series provide MNPT process connections with the IV featuring an union allowing the ball check to be rebuilt. All Injection Quills are available in PVC, CPVC and PVDF to match the widest range of chemicals.
3/4" Hayward IQ Series PVDF Injection Quill w/Threaded ends, FPM O-rings
Additional Information
MPN | IQ5075T03B |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Injection Valve |
Style | Injection Quill |
Series | IQ Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | Injection Valve |
Valve Size | 3/4" |
Valve Connection Type | Threaded |
Quill Bevel | 45 |
Material | PVDF |
Seal Type | Double O-Ring Stem |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 1 |
UPC Code | 0610377304245 |
Color | Gray |
Installation Manual | Hayward IQ5075T03B Installation Manual |
Technical Data | Hayward IQ5075T03B Technical Data |
Dimensions Image |
