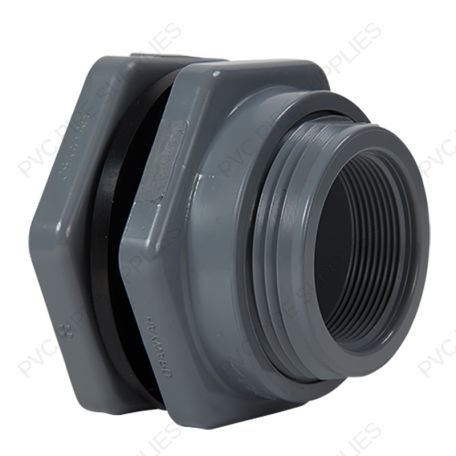

4" Hayward BFAS Series PVC Bulkhead Fitting w/Socket x Threaded ends

SKU: BFAS1040CES

4" PVC Bulkhead fitting, socket x threaded connections and EPDM gasket
$89.99
-
+
OR

Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe,quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.

Hayward BFAS Series bulkhead fittings have a shorter shaft length than the BFA Series.

SKU BFAS1040CES
Manufacturer Hayward
Type Bulkhead Fitting
Series BFAS Series
Schedule Schedule 80
Size 4"
Connection Type Socket x Threaded
Material PVC
Seal Material EPDM
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
UPC Code 610377144490
Technical Data Hayward BFAS1040CES Technical Data
